Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

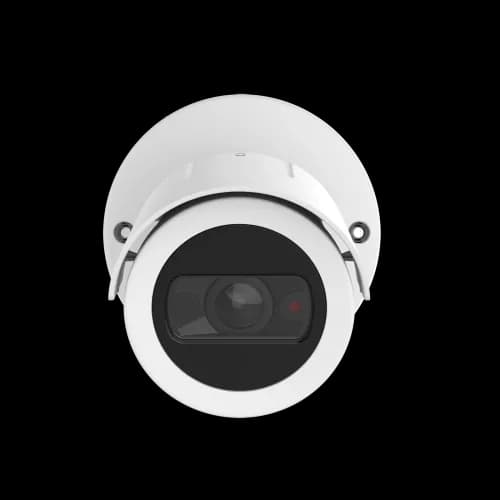

AXIS M2026-LE from AXIS COMMUNICATIONS - Mk II Network Camera viewed from its front.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M2026-LE Mk II Network Camera

Model: AXIS M2026-LE

Understand code
Request a Quote

Professional AXIS M2026-LE Mk II Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M2026-LE is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/3", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 2688x1520 resolution, Up to 25/30 fps capture, 1/3" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/3"
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.3 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
2688x1520
Frame Rate (fps)
25/30
Focal Length
2.4 mm
Horizontal Field of View
130 °
Vertical Field of View
73 °
Axis Zipstream
Yes
H.264
High, Main
H.265
Yes
PoE Class
3
Signed OS
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
IP Rating
IP66
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Object DetectionMotion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Document

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M2026-LE and what is it used for?+

The AXIS M2026-LE is a fixed camera from Axis Communications. The AXIS M2026-LE is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/3", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 2688x1520 resolution, Up to 25/30 fps capture, 1/3" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M2026-LE?+

The AXIS M2026-LE captures images at a resolution of 2688x1520 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.3 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS M2026-LE work in outdoor and harsh environments?+

The AXIS M2026-LE operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS M2026-LE?+

The AXIS M2026-LE has a lens with a focal length of 2.4 mm and a horizontal field of view of 130 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M2026-LE powered and installed?+

The AXIS M2026-LE is powered via Power over Ethernet (PoE class 3) with a maximum consumption of -. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M2026-LE?+

The main differentiators of the AXIS M2026-LE include: 2688x1520 resolution; Up to 25/30 fps capture; 1/3" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M2026-LE?+

The AXIS M2026-LE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Industrial security. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS M2026-LE compatible with VMS systems?+

Yes, the AXIS M2026-LE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS P3364-LV from AXIS COMMUNICATIONS - Semi-smoked Dome Covers, Black/White

AXIS P3364-LV

AXIS P3364-LV Semi-smoked Dome Covers

View specifications →

AXIS P3267-LVE from AXIS COMMUNICATIONS - , black camera with white cover anglöed to its right

AXIS P3267-LVE

AXIS P3267-LVE Dome Camera

View specifications →

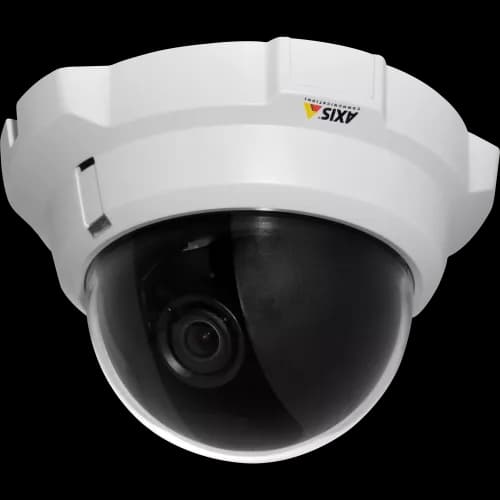

IP Camera AXIS P3304-V vandal-resistant and has Intelligent video capabilities. The camera is viewed from it´s left. from AXIS COMMUNICATIONS
