Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

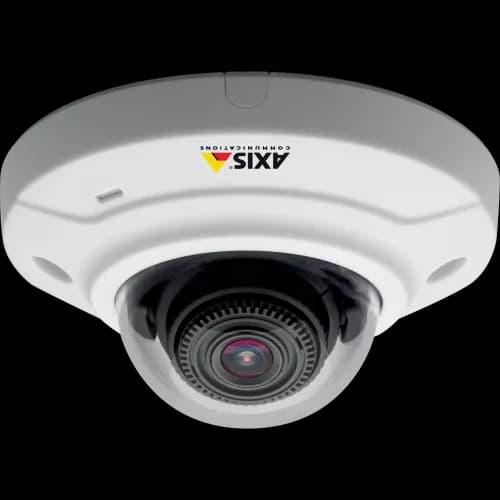

IP Camera AXIS M3005-V is ultra-compact and has vandal-resistant design with corridor format. from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M3005-V Network Camera

Model: AXIS M3005-V

Understand code
Request a Quote

Professional AXIS M3005-V Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3005-V is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution at up to 30 fps with a 1/2.7" CMOS sensor, Axis Lightfinder for low-light performance, and WDR for high-contrast scenes. Native ONVIF integration ensures compatibility with leading VMS platforms, backed by a 5-year warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.7"
Wide Dynamic Range (WDR)
Dynamic Contrast
Minimum Illumination (Color)
1.5 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
30
Focal Length
2.8 mm
Horizontal Field of View
118 °
Vertical Field of View
65 °
PoE Class
1
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 40 °C
Vandal rating
IK08
IP Rating
IP42
Designed for repainting
Yes

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Object DetectionMotion Detection

Downloads

Camera

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis M3004 V And Axis M3005 V Network Cameras

Other•PDF
ViewDownload

Eol Statement For Spare Parts Associated With Axis M3004 V And Axis M3005 V

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3005-V and what is it used for?+

The AXIS M3005-V is a fixed camera from Axis Communications. The AXIS M3005-V is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution at up to 30 fps with a 1/2.7" CMOS sensor, Axis Lightfinder for low-light performance, and WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3005-V?+

The AXIS M3005-V captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 30 fps. Minimum sensitivity of 1.5 lux lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS M3005-V work in outdoor and harsh environments?+

The AXIS M3005-V operates in temperatures of 0 to 40 °C with a rating of IP42 and impact resistance of IK08. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS M3005-V?+

The AXIS M3005-V has a lens with a focal length of 2.8 mm and a horizontal field of view of 118 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M3005-V powered and installed?+

The AXIS M3005-V is powered via Power over Ethernet (PoE class 1). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M3005-V?+

The main differentiators of the AXIS M3005-V include: Full HD 1080p resolution (2 MP); Up to 30 fps capture; 1/2.7" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3005-V?+

The AXIS M3005-V is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS M3005-V compatible with VMS systems?+

Yes, the AXIS M3005-V is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

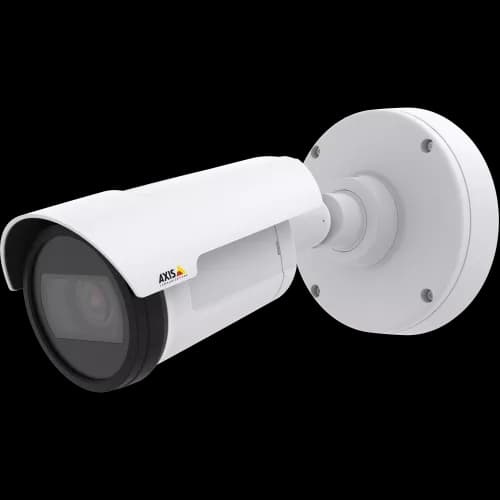

AXIS P1425-LE from AXIS COMMUNICATIONS - Mk II is a compact, outdoor-ready bullet camera in white color with OptimizeR.

AXIS P1425-LE

AXIS P1425-LE Mk II Network Camera

View specifications →

AXIS P1365-E from AXIS COMMUNICATIONS - Mk II is a roboust IP camera that's outdoot ready and has Zipstream

AXIS P1365-E

AXIS P1365-E Mk II Network Camera

View specifications →

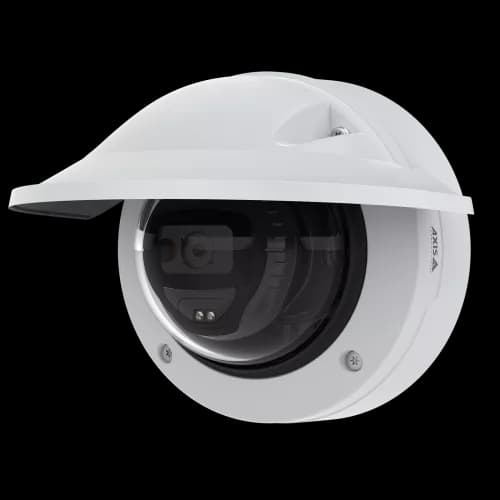

AXIS M3215-LVE from AXIS COMMUNICATIONS - in black and white, viewed from the right
