Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

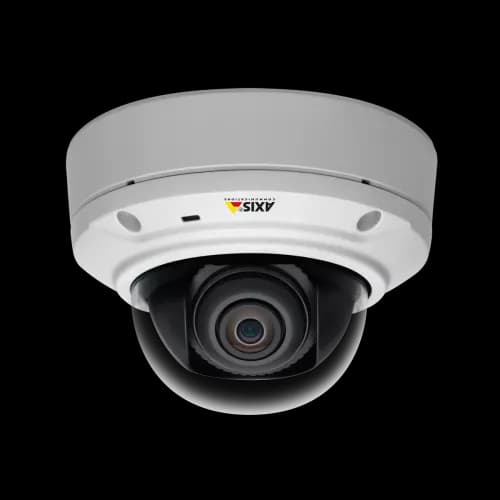

IP Camera AXIS M3026VE has compact, vandal-resistant, outdoor-ready design. The camera is viewed from its´ front. from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M3026-VE Network Camera

Model: AXIS M3026-VE

Understand code
Request a Quote

Professional AXIS M3026-VE Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3026-VE is a fixed dome network camera designed for discreet indoor and outdoor monitoring. It delivers sharp color images in low light with Axis Lightfinder technology and balances high-contrast scenes using Wide Dynamic Range for detailed video. Built-in edge analytics detect motion and events in real time, while its robust construction withstands dust, water, impact, and vandalism.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/3.6"
Wide Dynamic Range (WDR)
Dynamic Contrast
Minimum Illumination (Color)
0.3 lux
Minimum Illumination (B/W)
0.06 lux
Maximum Video Resolution
2048x1536
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
2.0 mm
Horizontal Field of View
106 °
Vertical Field of View
78 °
H.264
Baseline, Main
PoE Class
2
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66
Designed for repainting
Yes

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Object DetectionMotion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3026-VE and what is it used for?+

The AXIS M3026-VE is a fixed camera from Axis Communications. The AXIS M3026-VE is a fixed dome network camera designed for discreet indoor and outdoor monitoring. It delivers sharp color images in low light with Axis Lightfinder technology and balances high-contrast scenes using Wide Dynamic Range for detailed video. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3026-VE?+

The AXIS M3026-VE captures images at a resolution of 2048x1536 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.3 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS M3026-VE work in outdoor and harsh environments?+

The AXIS M3026-VE operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of IK10. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS M3026-VE?+

The AXIS M3026-VE has a lens with a focal length of 2.0 mm and a horizontal field of view of 106 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M3026-VE powered and installed?+

The AXIS M3026-VE is powered via Power over Ethernet (PoE class 2). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M3026-VE?+

The main differentiators of the AXIS M3026-VE include: 2048x1536 resolution; Up to 25/30 fps capture; 1/3.6" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3026-VE?+

The AXIS M3026-VE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Retail loss prevention, Cidades inteligentes. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS M3026-VE have built-in artificial intelligence?+

Yes, the AXIS M3026-VE features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.
