Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

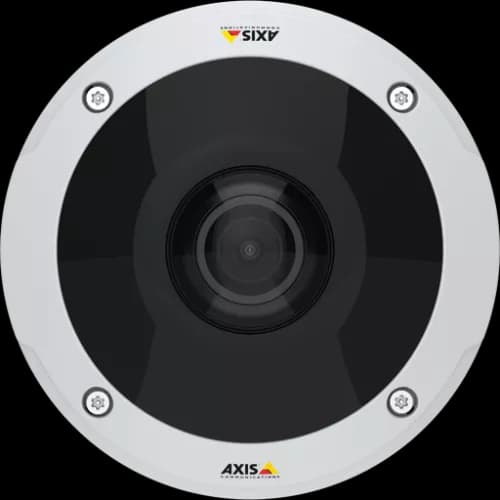

Front image of IP camera AXIS M3058-PLVE. from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M3058-PLVE Network Camera

Model: AXIS M3058-PLVE

Understand code
Request a Quote

Professional AXIS M3058-PLVE Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3058-PLVE fixed panoramic camera delivers a seamless 360-degree view for comprehensive wide-area monitoring. It combines Axis Lightfinder for sharp color images in low light with Forensic WDR to preserve details across high-contrast scenes, supported by built-in infrared for reliable 24/7 operation. Edge analytics enable real-time event detection, while its rugged outdoor design withstands harsh weather and impacts.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/1.7"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.19 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
2992x2992
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
1.3 mm
Horizontal Field of View
181 °
Vertical Field of View
181 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
Signed OS
Yes
Built-in IR
Yes
IR otimizado
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-40 to 50 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Object DetectionMotion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3058-PLVE and what is it used for?+

The AXIS M3058-PLVE is a fixed camera from Axis Communications. The AXIS M3058-PLVE fixed panoramic camera delivers a seamless 360-degree view for comprehensive wide-area monitoring. It combines Axis Lightfinder for sharp color images in low light with Forensic WDR to preserve details across high-contrast scenes, supported by built-in infrared for reliable 24/7 operation. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3058-PLVE?+

The AXIS M3058-PLVE captures images at a resolution of 2992x2992 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.19 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS M3058-PLVE work in outdoor and harsh environments?+

The AXIS M3058-PLVE operates in temperatures of -40 to 50 °C with a rating of IP66 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS M3058-PLVE?+

The AXIS M3058-PLVE has a lens with a focal length of 1.3 mm and a horizontal field of view of 181 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

What are the key technical differentiators of the AXIS M3058-PLVE?+

The main differentiators of the AXIS M3058-PLVE include: 2992x2992 resolution; Up to 25/30 fps capture; 1/1.7" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3058-PLVE?+

The AXIS M3058-PLVE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Retail loss prevention, Industrial security. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS M3058-PLVE have built-in artificial intelligence?+

Yes, the AXIS M3058-PLVE features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.

Is the AXIS M3058-PLVE compatible with VMS systems?+

Yes, the AXIS M3058-PLVE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
