Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

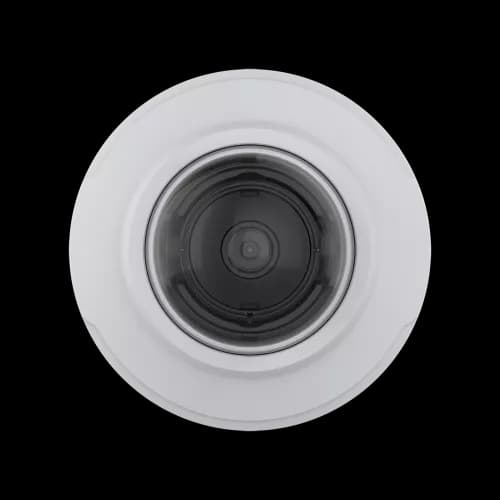

AXIS IP from AXIS COMMUNICATIONS - Camera M3064-V is WDR and Day/night functionality and HDTV 1080p video quality
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M3064-V Network Camera

Model: AXIS M3064-V

Understand code
Request a Quote

Professional AXIS M3064-V Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3064-V is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.9", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 1280x720 resolution, Up to 25/30 fps capture, 1/2.9" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.9"
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.2 lux
Minimum Illumination (B/W)
0.04 lux
Maximum Video Resolution
1280x720
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
3.1 mm
Horizontal Field of View
83 °
Vertical Field of View
45 °
Axis Zipstream
Yes
H.264
High, Main
H.265
Yes
PoE Class
1
Signed OS
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 45 °C
Vandal rating
IK08
IP Rating
IP42
Designed for repainting
Yes
Sustainability
BFR/CFR free, PVC free

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Object DetectionMotion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3064-V and what is it used for?+

The AXIS M3064-V is a fixed camera from Axis Communications. The AXIS M3064-V is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.9", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 1280x720 resolution, Up to 25/30 fps capture, 1/2.9" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3064-V?+

The AXIS M3064-V captures images at a resolution of 1280x720 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.2 lux. This HD resolution serves general monitoring applications well with optimized bandwidth and storage.

Does the AXIS M3064-V work in outdoor and harsh environments?+

The AXIS M3064-V operates in temperatures of 0 to 45 °C with a rating of IP42 and impact resistance of IK08. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS M3064-V?+

The AXIS M3064-V has a lens with a focal length of 3.1 mm and a horizontal field of view of 83 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M3064-V powered and installed?+

The AXIS M3064-V is powered via Power over Ethernet (PoE class 1). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M3064-V?+

The main differentiators of the AXIS M3064-V include: 1280x720 resolution; Up to 25/30 fps capture; 1/2.9" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3064-V?+

The AXIS M3064-V is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Retail loss prevention. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS M3064-V compatible with VMS systems?+

Yes, the AXIS M3064-V is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
