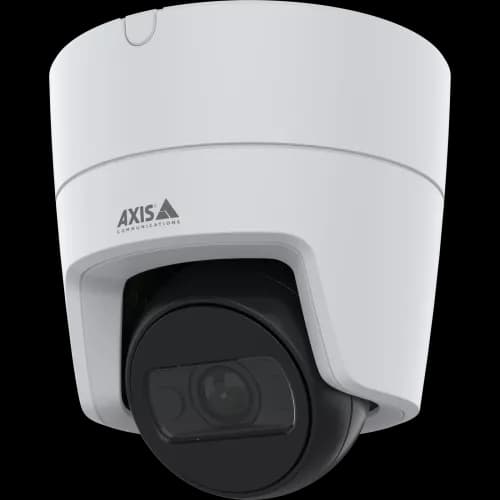

White AXIS M3126-LVE Dome Camera viewed from its left from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty
AXIS OS
AXIS OS
Robust and constantly updated operating system from Axis
OptimizedIR
OptimizedIR
Optimized infrared illumination for uniform night vision without reflections

AXIS M3126-LVE Dome Camera

Model: AXIS M3126-LVE

Understand code
Request a Quote

Professional AXIS M3126-LVE Dome Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3126-LVE is a fixed dome network camera designed for discreet indoor and outdoor monitoring. It delivers sharp color images in low light with Axis Lightfinder technology, balanced exposure in high-contrast scenes via WDR, and 24/7 visibility through built-in IR illumination, while Axis Zipstream with H.265 compression reduces bandwidth and storage needs. Built-in AXIS Object Analytics detects and classifies people and vehicles in real time, and its robust construction withstands harsh weather and impacts.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.7"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.19 lux
Minimum Illumination (B/W)
0.04 lux
Maximum Video Resolution
2688x1512
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
2.4 mm
Horizontal Field of View
130 °
Vertical Field of View
73 °
Axis Zipstream
Yes
H.264
High, Main
H.265
Yes
PoE Class
3
Signed OS
Yes
Secure Boot
Yes
Armazenamento seguro de chaves
Secure Element (CC EAL6+, FIPS 140-3 Level 3)
Axis Edge Vault
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
Vandal rating
IK08
IP Rating
IP66
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Motion Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3126-LVE and what is it used for?+

The AXIS M3126-LVE is a fixed camera from Axis Communications. The AXIS M3126-LVE is a fixed dome network camera designed for discreet indoor and outdoor monitoring. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3126-LVE?+

The AXIS M3126-LVE captures images at a resolution of 2688x1512 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.19 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS M3126-LVE work in outdoor and harsh environments?+

The AXIS M3126-LVE operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of IK08. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS M3126-LVE?+

The AXIS M3126-LVE has a lens with a focal length of 2.4 mm and a horizontal field of view of 130 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M3126-LVE powered and installed?+

The AXIS M3126-LVE is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M3126-LVE?+

The main differentiators of the AXIS M3126-LVE include: 2688x1512 resolution; Up to 25/30 fps capture; 1/2.7" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3126-LVE?+

The AXIS M3126-LVE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Security in transports. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS M3126-LVE have built-in artificial intelligence?+

Yes, the AXIS M3126-LVE features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.
