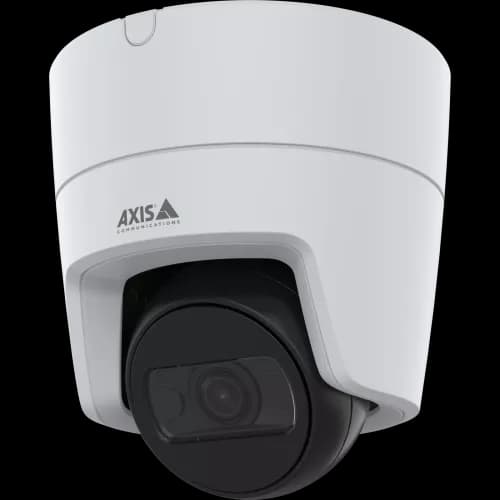

White AXIS M3128-LVE Dome Camera viewed from its left from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty
AXIS OS
AXIS OS
Robust and constantly updated operating system from Axis
OptimizedIR
OptimizedIR
Optimized infrared illumination for uniform night vision without reflections

AXIS M3128-LVE Dome Camera

Model: AXIS M3128-LVE

Understand code
Request a Quote

Professional AXIS M3128-LVE Dome Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3128-LVE is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.8", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 4 resolution, Up to 12/15 fps capture, 1/2.8" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.22 lux
Minimum Illumination (B/W)
0.05 lux
Maximum Video Resolution
3840x2160
Frame Rate (fps)
12/15
Day/Night Functionality
Yes
Focal Length
2.9 mm
Horizontal Field of View
110 °
Vertical Field of View
60 °
Axis Zipstream
Yes
H.264
High, Main
H.265
Yes
PoE Class
3
Signed OS
Yes
Secure Boot
Yes
Armazenamento seguro de chaves
Secure Element (CC EAL6+, FIPS 140-3 Level 3)
Axis Edge Vault
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
Vandal rating
IK08
IP Rating
IP66
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Motion Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3128-LVE and what is it used for?+

The AXIS M3128-LVE is a fixed camera from Axis Communications. The AXIS M3128-LVE is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.8", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 4 resolution, Up to 12/15 fps capture, 1/2.8" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3128-LVE?+

The AXIS M3128-LVE captures images at a resolution of 3840x2160 using a CMOS sensor, at up to 12 fps. Minimum sensitivity of 0.22 lux. This 4K resolution enables facial identification at distances exceeding 20 meters and license plate reading.

Does the AXIS M3128-LVE work in outdoor and harsh environments?+

The AXIS M3128-LVE operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of IK08. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS M3128-LVE?+

The AXIS M3128-LVE has a lens with a focal length of 2.9 mm and a horizontal field of view of 110 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M3128-LVE powered and installed?+

The AXIS M3128-LVE is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M3128-LVE?+

The main differentiators of the AXIS M3128-LVE include: 4 resolution; Up to 12/15 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3128-LVE?+

The AXIS M3128-LVE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Security in transports. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS M3128-LVE have built-in artificial intelligence?+

Yes, the AXIS M3128-LVE features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.

Related Products

AXIS CONNECTOR from AXIS COMMUNICATIONS - A 2-pin 3.81 Straight

AXIS M1124

AXIS M1124 Network Camera

View specifications →

AXIS Q7401 from AXIS COMMUNICATIONS - from rigth angle

AXIS Q7401

AXIS Q7401 Video Encoder

View specifications →

White AXIS P1488-LE Bullet Camera viewed from it's left angle. from AXIS COMMUNICATIONS

AXIS P1488-LE

AXIS P1488-LE Bullet Camera

View specifications →

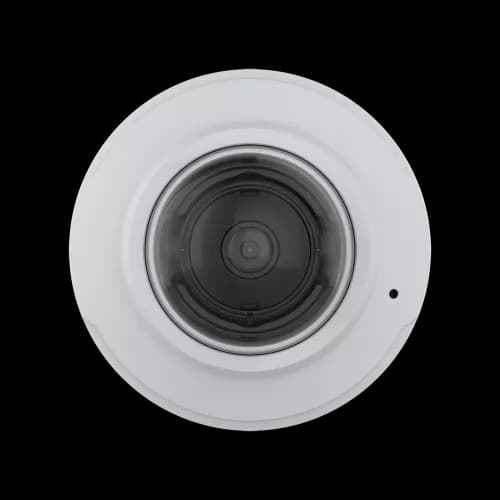

AXIS M3075-V from AXIS COMMUNICATIONS - mounted on wall from fron
