Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

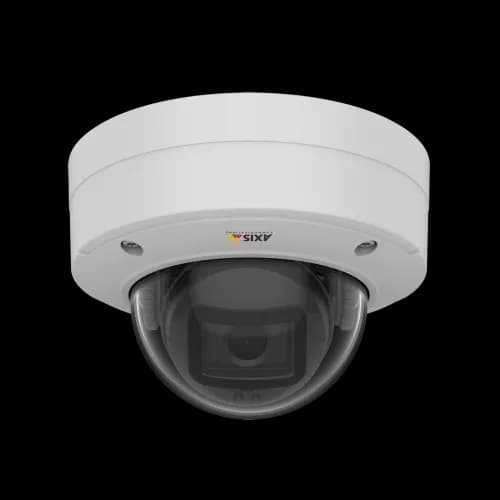

AXIS IP from AXIS COMMUNICATIONS - Camera M3205-LVE has HDTV 1080p video quality and WDR and IR illumination
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M3205-LVE Network Camera

Model: AXIS M3205-LVE

Understand code
Request a Quote

Professional AXIS M3205-LVE Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3205-LVE is a fixed dome network camera for discreet indoor and outdoor monitoring. It delivers sharp Full HD video in low light with Axis Lightfinder and WDR technology, plus built-in IR for complete darkness and Zipstream for reduced bandwidth. Its rugged IP66- and IK10-rated design supports PoE, two-way audio, edge analytics, and broad coverage.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.9"
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.2 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
3.1 mm
Horizontal Field of View
100 °
Vertical Field of View
54 °
Axis Zipstream
Yes
H.264
High, Main
H.265
Yes
Audio Support
Yes
PoE Class
3
Signed OS
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-40 to 50 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Intrusion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3205-LVE and what is it used for?+

The AXIS M3205-LVE is a fixed camera from Axis Communications. The AXIS M3205-LVE is a fixed dome network camera for discreet indoor and outdoor monitoring. It delivers sharp Full HD video in low light with Axis Lightfinder and WDR technology, plus built-in IR for complete darkness and Zipstream for reduced bandwidth. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3205-LVE?+

The AXIS M3205-LVE captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.2 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS M3205-LVE work in outdoor and harsh environments?+

The AXIS M3205-LVE operates in temperatures of -40 to 50 °C with a rating of IP66 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS M3205-LVE?+

The AXIS M3205-LVE has a lens with a focal length of 3.1 mm and a horizontal field of view of 100 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M3205-LVE powered and installed?+

The AXIS M3205-LVE is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M3205-LVE?+

The main differentiators of the AXIS M3205-LVE include: Full HD 1080p resolution (2 MP); Up to 25/30 fps capture; 1/2.9" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3205-LVE?+

The AXIS M3205-LVE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS M3205-LVE compatible with VMS systems?+

Yes, the AXIS M3205-LVE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
