Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

AXIS P1214-E from AXIS COMMUNICATIONS - box IP camera - product image
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P1214-E Network Camera

Model: AXIS P1214-E

Understand code
Request a Quote

Professional AXIS P1214-E Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAP
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P1214-E is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Wide Dynamic Range: -, Min Illumination (Color): 1.2 lux, Min Illumination (B/W): -. Notable features: 1280x720 resolution, Up to 25/30 fps capture, Sensor CMOS, 1.2 lux minimum sensitivity. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP Supported
Image Sensor
CMOS
Minimum Illumination (Color)
1.2 lux
Maximum Video Resolution
1280x720
Frame Rate (fps)
25/30
Focal Length
2.8 mm
Lente varifocal
No
Aperture
2.0
Horizontal Field of View
81 °
Vertical Field of View
44 °
Montagem da lente
M12
Replaceable lens
Yes
H.264
Baseline
Active tamper detection
Yes
Alarm Inputs/Outputs
1/1
I/O digital
Yes
Power over Ethernet
Yes
PoE Class
2
Criptografia HTTPS
Yes
IEEE 802.1X
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-20 to 50 °C
Ready for external use
Yes
IP Rating
IP66
Maximum power
4.7 W
DC input voltage
8-28 V

Available APIs

VAPIXParameterVideoEvents

Security

HTTPSPassword protection

Networking

IPv4IPv6HTTPS

Video Analytics

Tampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P1214-E and what is it used for?+

The AXIS P1214-E is a fixed camera from Axis Communications. The AXIS P1214-E is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Wide Dynamic Range: -, Min Illumination (Color): 1.2 lux, Min Illumination (B/W): -. Notable features: 1280x720 resolution, Up to 25/30 fps capture, Sensor CMOS, 1.2 lux minimum sensitivity. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P1214-E?+

The AXIS P1214-E captures images at a resolution of - using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 1.2 lux.

Does the AXIS P1214-E work in outdoor and harsh environments?+

The AXIS P1214-E operates in temperatures of -20 to 50 °C with a rating of IP66 and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P1214-E?+

The AXIS P1214-E has a lens with a focal length of 2.8 mm and a horizontal field of view of 81 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P1214-E powered and installed?+

The AXIS P1214-E is powered via Power over Ethernet (PoE class 2) with a maximum consumption of Yes. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P1214-E?+

The main differentiators of the AXIS P1214-E include: 1280x720 resolution; Up to 25/30 fps capture; Sensor CMOS; 1.2 lux minimum sensitivity; H.264 compression. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P1214-E?+

The AXIS P1214-E is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P1214-E compatible with VMS systems?+

Yes, the AXIS P1214-E is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS Q1615 from AXIS COMMUNICATIONS - Mk II IP Camera has Electronic Image Stabilization. The product is viewed from its front.

AXIS Q1615

AXIS Q1615 Mk II Network Camera

View specifications →

AXIS Q3556-LVE from AXIS COMMUNICATIONS - Dome Camera

AXIS Q3556-LVE

AXIS Q3556-LVE Dome Camera

View specifications →

AXIS P3905-R from AXIS COMMUNICATIONS - Mk III Dome Camera

AXIS P3905-R

AXIS P3905-R Mk III Dome Camera

View specifications →

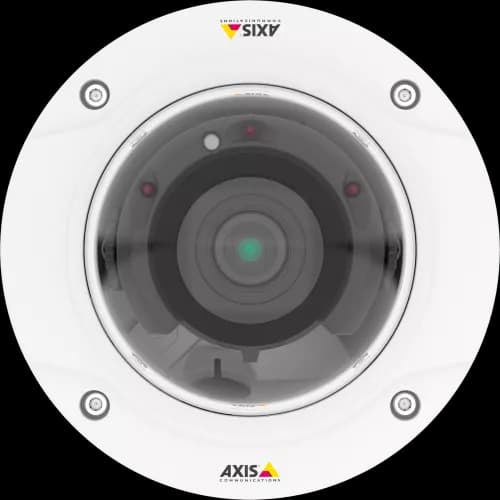

AXIS IP from AXIS COMMUNICATIONS - Camera P3227-LV has Zipstream for reduced bandwidth and storage needs
