AXIS P1245 from AXIS COMMUNICATIONS - Mk II Modular Standard Camera
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty
Zipstream
Zipstream
Smart compression that reduces bandwidth and storage without losing quality
Wide Dynamic Range (WDR)
Wide Dynamic Range (WDR)
Balances bright and dark areas for sharp images in challenging lighting conditions

AXIS P1245 Mk II Modular Standard Camera

Model: AXIS P1245

Understand code
Request a Quote

Professional AXIS P1245 Mk II Modular Standard Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On requestACAP
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P1245 is a fixed Full HD 1080p security camera engineered for professional surveillance with advanced low-light performance at 0.2 lux sensitivity and CMOS imaging technology. It delivers efficient video compression through Zipstream with H.265 codec, reducing bandwidth and storage demands while maintaining 25/30 fps capture rates. Built-in AXIS Object Analytics enables intelligent person and vehicle detection for enhanced security monitoring across diverse environments.

Technical Specifications

ACAP Supported
Image Sensor
CMOS
Minimum Illumination (Color)
0.2 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
25/30
Focal Length
2.8 mm
Lente varifocal
No
Aperture
2.0
Horizontal Field of View
111 °
Vertical Field of View
61 °
Montagem da lente
M12
Replaceable lens
Yes
Axis Zipstream
Yes
H.264
High, Main
H.265
Yes
Active tampering detection
Yes
Power over Ethernet
Yes
PoE Class
2
Criptografia HTTPS
Yes
IEEE 802.1X
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-20 to 45 °C
IP Rating
IP3X

Available APIs

VAPIXParameterVideoEvents

Security

HTTPSPassword protection

Networking

IPv4IPv6HTTPS

Video Analytics

Tampering DetectionAudio Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P1245 and what is it used for?+

The AXIS P1245 is a fixed camera from Axis Communications. The AXIS P1245 is a fixed Full HD 1080p security camera engineered for professional surveillance with advanced low-light performance at 0.2 lux sensitivity and CMOS imaging technology. It delivers efficient video compression through Zipstream with H.265 codec, reducing bandwidth and storage demands while maintaining 25/30 fps capture rates. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P1245?+

The AXIS P1245 captures images at a resolution of - using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.2 lux.

Does the AXIS P1245 work in outdoor and harsh environments?+

The AXIS P1245 operates in temperatures of -20 to 45 °C with a rating of IP3X and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P1245?+

The AXIS P1245 has a lens with a focal length of 2.8 mm and a horizontal field of view of 111 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P1245 powered and installed?+

The AXIS P1245 is powered via Power over Ethernet (PoE class 2) with a maximum consumption of Yes. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P1245?+

The main differentiators of the AXIS P1245 include: Full HD 1080p resolution (2 MP); Up to 25/30 fps capture; Sensor CMOS; 0.2 lux minimum sensitivity; Zipstream with H.265 for bandwidth and storage savings. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P1245?+

The AXIS P1245 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Cidades inteligentes. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS P1245 have built-in artificial intelligence?+

Yes, the AXIS P1245 features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.

Related Products

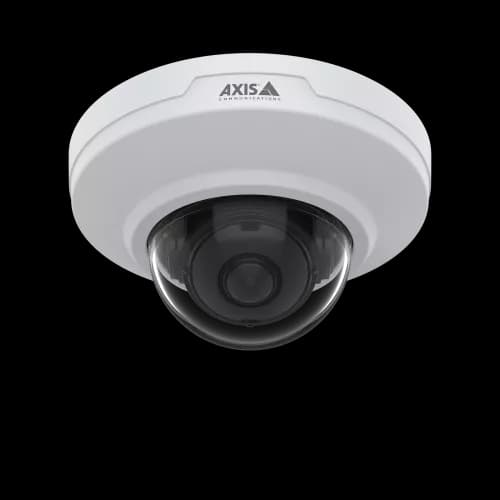

AXIS M3086-V from Axis Communications - dome IP camera - product image
