Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

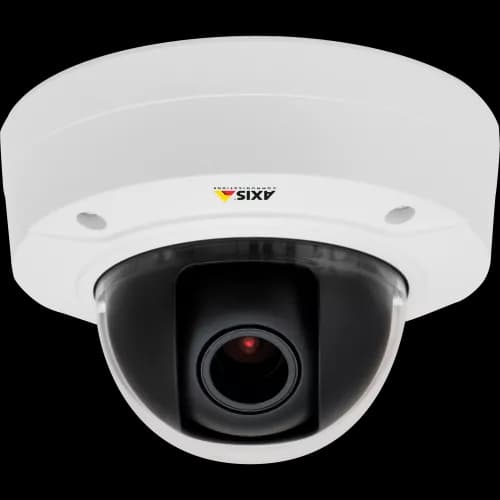

IP Camera AXIS P3214-V has remote zoom, focus and edge storage. The camera is viewed from it´s front. from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P3214-V Network Camera

Model: AXIS P3214-V

Understand code
Request a Quote

Professional AXIS P3214-V Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P3214-V is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.8", Lightfinder: -, Wide Dynamic Range: Dynamic Contrast. Notable features: 1280x960 resolution, Up to 25/30 fps capture, 1/2.8" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Wide Dynamic Range (WDR)
Dynamic Contrast
Minimum Illumination (Color)
0.3 lux
Minimum Illumination (B/W)
0.06 lux
Maximum Video Resolution
1280x960
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
2.8 - 10 mm
Horizontal Field of View
92 - 33 °
Vertical Field of View
49 - 20 °
H.264
Baseline, Main
PoE Class
2
Remote Focus
Yes
Zoom remoto
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 50 °C
Vandal rating
IK08
IP Rating
IP42
Designed for repainting
Yes

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Object DetectionMotion DetectionTampering Detection

Downloads

Camera

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

V, P3215 V Network Camera

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis P3214 V Ve And P3215 V Ve Network Cameras

Other•PDF
ViewDownload

Eol Statement For Axis T91a47 Pole Mount And Miscellaneous Spare Parts

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P3214-V and what is it used for?+

The AXIS P3214-V is a fixed camera from Axis Communications. The AXIS P3214-V is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.8", Lightfinder: -, Wide Dynamic Range: Dynamic Contrast. Notable features: 1280x960 resolution, Up to 25/30 fps capture, 1/2.8" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P3214-V?+

The AXIS P3214-V captures images at a resolution of 1280x960 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.3 lux lux. This HD resolution serves general monitoring applications well with optimized bandwidth and storage.

Does the AXIS P3214-V work in outdoor and harsh environments?+

The AXIS P3214-V operates in temperatures of 0 to 50 °C with a rating of IP42 and impact resistance of IK08. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS P3214-V?+

The AXIS P3214-V has a lens with a focal length of 2.8 - 10 mm and a horizontal field of view of 92 - 33 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P3214-V powered and installed?+

The AXIS P3214-V is powered via Power over Ethernet (PoE class 2). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P3214-V?+

The main differentiators of the AXIS P3214-V include: 1280x960 resolution; Up to 25/30 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P3214-V?+

The AXIS P3214-V is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P3214-V compatible with VMS systems?+

Yes, the AXIS P3214-V is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
