  7. AXIS P3245-LV

Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

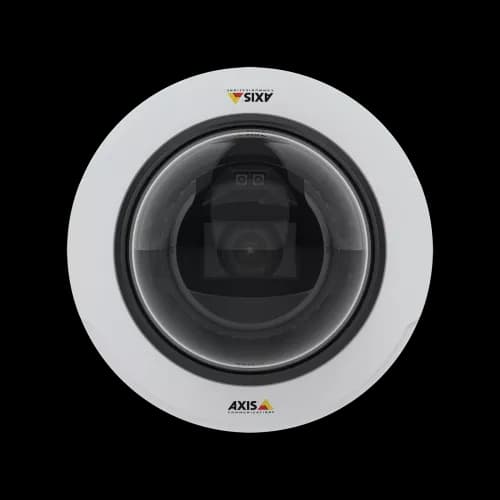

AXIS P3245-LV from AXIS COMMUNICATIONS - IP Camera viewed from its front
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P3245-LV Network Camera

Model: AXIS P3245-LV

Understand code
Request a Quote

Professional AXIS P3245-LV Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P3245-LV is a fixed dome network camera for discreet indoor and outdoor monitoring. It delivers sharp Full HD video with smooth motion capture, excels in low-light conditions using Lightfinder technology and infrared illumination, and handles high-contrast scenes with Forensic WDR. Edge analytics, two-way audio, and Zipstream compression provide efficient real-time detection and reduced bandwidth needs.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Lightfinder
Lightfinder 2.0
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.1 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
50/60
Day/Night Functionality
Yes
Focal Length
3.4 - 8.9 mm
Horizontal Field of View
100-36 °
Vertical Field of View
53-20 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
Audio Support
Yes
PoE Class
3
Signed OS
Yes
Secure Boot
Yes
Remote Focus
Yes
Zoom remoto
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 50 °C
Vandal rating
IK10
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Intrusion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Comparison

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P3245-LV and what is it used for?+

The AXIS P3245-LV is a fixed camera from Axis Communications. The AXIS P3245-LV is a fixed dome network camera for discreet indoor and outdoor monitoring. It delivers sharp Full HD video with smooth motion capture, excels in low-light conditions using Lightfinder technology and infrared illumination, and handles high-contrast scenes with Forensic WDR. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P3245-LV?+

The AXIS P3245-LV captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.1 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS P3245-LV work in outdoor and harsh environments?+

The AXIS P3245-LV operates in temperatures of 0 to 50 °C with a rating of - and impact resistance of IK10. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS P3245-LV?+

The AXIS P3245-LV has a lens with a focal length of 3.4 - 8.9 mm and a horizontal field of view of 100-36 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P3245-LV powered and installed?+

The AXIS P3245-LV is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P3245-LV?+

The main differentiators of the AXIS P3245-LV include: Full HD 1080p resolution (2 MP); Up to 50/60 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P3245-LV?+

The AXIS P3245-LV is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Retail loss prevention, Industrial security. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P3245-LV compatible with VMS systems?+

Yes, the AXIS P3245-LV is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
