Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

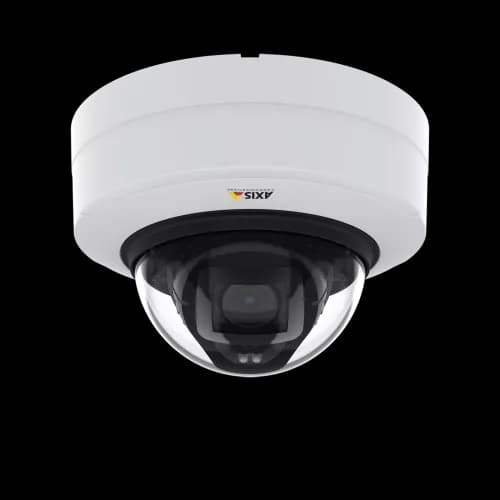

White IP camera AXIS P3247-LV viewed from its front. from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P3247-LV Network Camera

Model: AXIS P3247-LV

Understand code
Request a Quote

Professional AXIS P3247-LV Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P3247-LV is a fixed dome network camera designed for discreet monitoring in indoor and outdoor environments. It delivers sharp color images in low light with Axis Lightfinder technology, handles high-contrast scenes through Forensic WDR, and supports 24/7 operation with built-in infrared illumination. Edge analytics, Zipstream compression, two-way audio, and PoE simplify deployment while maintaining image quality and system security.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.7"
Lightfinder
Lightfinder 2.0
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.13 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
2592x1944
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
3 - 8 mm
Horizontal Field of View
104 - 40 °
Vertical Field of View
74 - 29 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
Audio Support
Yes
PoE Class
3
Signed OS
Yes
Secure Boot
Yes
Armazenamento seguro de chaves
Secure Element (CC EAL6+)
Axis Edge Vault
Yes
Remote Focus
Yes
Zoom remoto
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 50 °C
Vandal rating
IK10
IP Rating
IP52
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Intrusion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P3247-LV and what is it used for?+

The AXIS P3247-LV is a fixed camera from Axis Communications. The AXIS P3247-LV is a fixed dome network camera designed for discreet monitoring in indoor and outdoor environments. It delivers sharp color images in low light with Axis Lightfinder technology, handles high-contrast scenes through Forensic WDR, and supports 24/7 operation with built-in infrared illumination. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P3247-LV?+

The AXIS P3247-LV captures images at a resolution of 2592x1944 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.13 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS P3247-LV work in outdoor and harsh environments?+

The AXIS P3247-LV operates in temperatures of 0 to 50 °C with a rating of IP52 and impact resistance of IK10. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS P3247-LV?+

The AXIS P3247-LV has a lens with a focal length of 3 - 8 mm and a horizontal field of view of 104 - 40 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P3247-LV powered and installed?+

The AXIS P3247-LV is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P3247-LV?+

The main differentiators of the AXIS P3247-LV include: 2592x1944 resolution; Up to 25/30 fps capture; 1/2.7" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P3247-LV?+

The AXIS P3247-LV is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS P3247-LV have built-in artificial intelligence?+

Yes, the AXIS P3247-LV features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.
