  7. AXIS P3247-LVE

Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

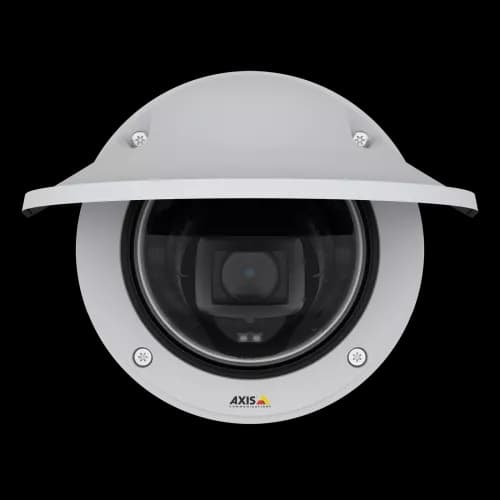

AXIS P3247-LVE from AXIS COMMUNICATIONS - offers excellent image quality with 5 MP resolution at up to 30 fps.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P3247-LVE Network Camera

Model: AXIS P3247-LVE

Understand code
Request a Quote

Professional AXIS P3247-LVE Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P3247-LVE is a fixed dome network camera designed for discreet indoor and outdoor monitoring. It delivers sharp color images in low light with Axis Lightfinder technology, handles high-contrast scenes through Forensic WDR, and supports 24/7 operation with built-in IR illumination. Edge analytics, two-way audio, and robust construction with IP66, IK10 ratings enable reliable surveillance in demanding environments.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.7"
Lightfinder
Lightfinder 2.0
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.13 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
2592x1944
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
3 - 8 mm
Horizontal Field of View
104 - 40 °
Vertical Field of View
74 - 29 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
Audio Support
Yes
PoE Class
3
Signed OS
Yes
Secure Boot
Yes
Armazenamento seguro de chaves
Secure Element (CC EAL6+)
Axis Edge Vault
Yes
Remote Focus
Yes
Zoom remoto
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-40 to 50 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Intrusion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P3247-LVE and what is it used for?+

The AXIS P3247-LVE is a fixed camera from Axis Communications. The AXIS P3247-LVE is a fixed dome network camera designed for discreet indoor and outdoor monitoring. It delivers sharp color images in low light with Axis Lightfinder technology, handles high-contrast scenes through Forensic WDR, and supports 24/7 operation with built-in IR illumination. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P3247-LVE?+

The AXIS P3247-LVE captures images at a resolution of 2592x1944 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.13 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS P3247-LVE work in outdoor and harsh environments?+

The AXIS P3247-LVE operates in temperatures of -40 to 50 °C with a rating of IP66 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS P3247-LVE?+

The AXIS P3247-LVE has a lens with a focal length of 3 - 8 mm and a horizontal field of view of 104 - 40 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P3247-LVE powered and installed?+

The AXIS P3247-LVE is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P3247-LVE?+

The main differentiators of the AXIS P3247-LVE include: 2592x1944 resolution; Up to 25/30 fps capture; 1/2.7" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P3247-LVE?+

The AXIS P3247-LVE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P3247-LVE compatible with VMS systems?+

Yes, the AXIS P3247-LVE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
