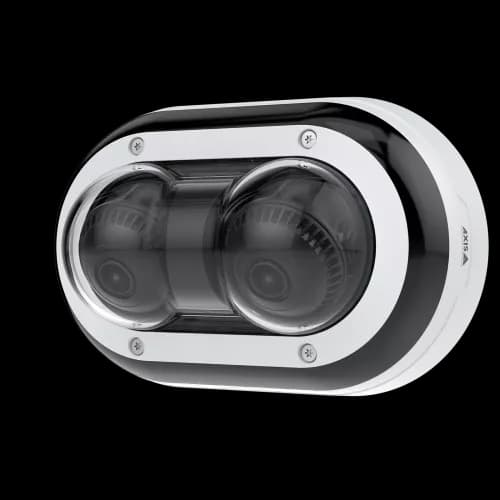

AXIS P4705-PLVE from Axis Communications - panoramic IP camera - product image
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty
Lightfinder
Lightfinder
Technology that captures vivid colors even in extremely low-light environments
Wide Dynamic Range (WDR)
Wide Dynamic Range (WDR)
Balances bright and dark areas for sharp images in challenging lighting conditions
Zipstream
Zipstream
Smart compression that reduces bandwidth and storage without losing quality

AXIS P4705-PLVE Panoramic Camera

Model: AXIS P4705-PLVE

Understand code
Request a Quote

Professional AXIS P4705-PLVE Panoramic Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On request⭐Best Seller🔥TrendingACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P4705-PLVE fixed camera delivers clear Full HD 1080p video with up to 60 fps capture, powered by a 1/2.8" CMOS sensor. Axis Lightfinder technology excels in low-light conditions down to 0.15 lux, while Forensic WDR handles high-contrast scenes effectively. It integrates seamlessly with leading VMS platforms via ONVIF for reliable professional surveillance.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.15 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
60
Day/Night Functionality
Yes
Focal Length
3.26-8.12 mm
Horizontal Field of View
180 °
Vertical Field of View
55.42-21.98 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
Audio Support
Yes
Signed OS
Yes
Secure Boot
Yes
Remote Focus
Yes
Zoom remoto
Yes
Built-in IR
Yes
IR otimizado
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66, IP67
Sustainability
BFR/CFR free, PVC free

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Motion Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P4705-PLVE and what is it used for?+

The AXIS P4705-PLVE is a fixed camera from Axis Communications. The AXIS P4705-PLVE fixed camera delivers clear Full HD 1080p video with up to 60 fps capture, powered by a 1/2.8" CMOS sensor. Axis Lightfinder technology excels in low-light conditions down to 0.15 lux, while Forensic WDR handles high-contrast scenes effectively. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P4705-PLVE?+

The AXIS P4705-PLVE captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 60 fps. Minimum sensitivity of 0.15 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS P4705-PLVE work in outdoor and harsh environments?+

The AXIS P4705-PLVE operates in temperatures of -30 to 50 °C with a rating of IP66, IP67 and impact resistance of IK10. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P4705-PLVE?+

The AXIS P4705-PLVE has a lens with a focal length of 3.26-8.12 mm and a horizontal field of view of 180 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

What are the key technical differentiators of the AXIS P4705-PLVE?+

The main differentiators of the AXIS P4705-PLVE include: Full HD 1080p resolution (2 MP); Up to 60 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P4705-PLVE?+

The AXIS P4705-PLVE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Cidades inteligentes. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P4705-PLVE compatible with VMS systems?+

Yes, the AXIS P4705-PLVE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Does the AXIS P4705-PLVE perform well in low light?+

Yes, the AXIS P4705-PLVE incorporates Axis Lightfinder technology, which captures sharp color images even in extremely low-light conditions, reducing dependence on infrared illumination and maintaining color fidelity for more accurate identification.

Related Products

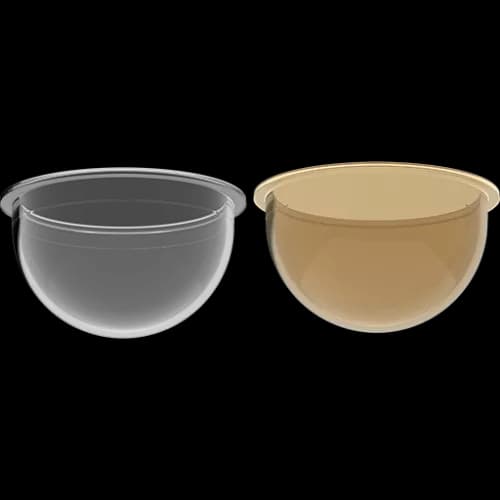

AXIS Q3505-V from AXIS COMMUNICATIONS - Clear/Smoked Domes

AXIS Q3505-V

AXIS Q3505-V Clear/Smoked Domes

View specifications →

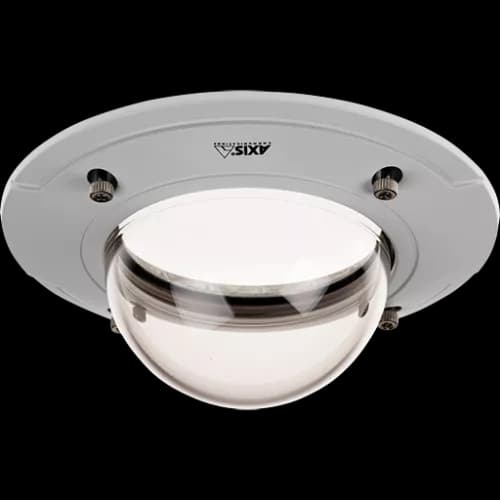

AXIS P3364-LVE from AXIS COMMUNICATIONS - Semi-smoked Dome Cover

AXIS P3364-LVE

AXIS P3364-LVE Semi-smoked Dome Cover

View specifications →

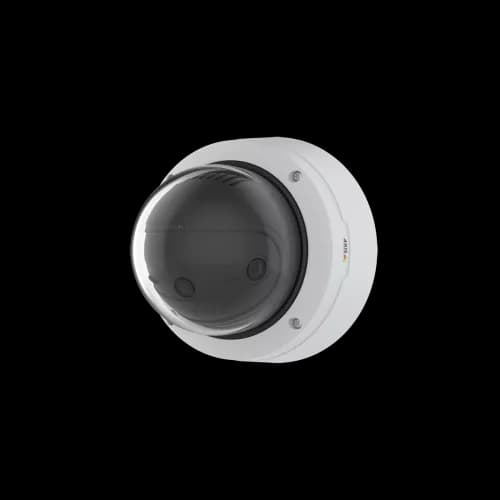

AXIS P3818-PVE from AXIS COMMUNICATIONS - Panoramic Camera from left

AXIS P3818-PVE

AXIS P3818-PVE Panoramic Camera

View specifications →

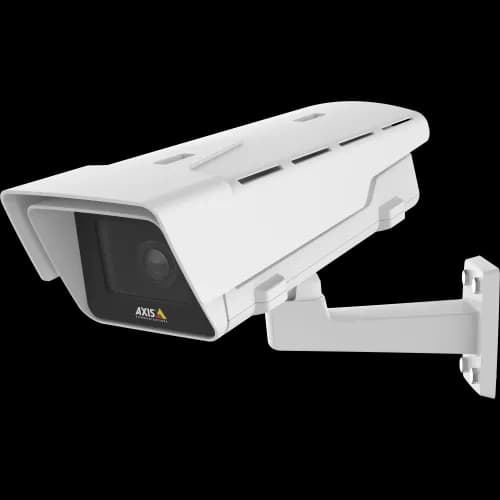

AXIS P1364-E from AXIS COMMUNICATIONS - IP camera is suitable for outdoor use and large areas. The camera is viewed from its left.
