  7. AXIS P7316

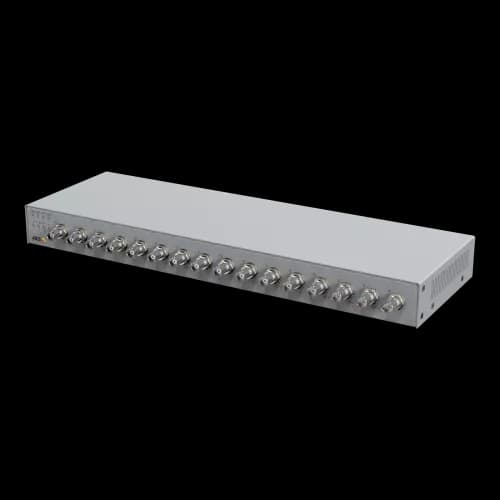

AXIS P7316 from AXIS COMMUNICATIONS - Video Encoder, viewed from its left angle
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P7316 Video Encoder

Model: AXIS P7316

Understand code
Request a Quote

Professional AXIS P7316 Video Encoder solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On request🔥TrendingACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P7316 is a 16-channel video server designed for professional surveillance installations, offering flexible video management in a compact 1U rack-mountable form factor. Supporting multiple resolutions up to 1920x1080 and seamless VMS integration via ONVIF protocol, it delivers superior image quality with straightforward deployment for security-focused operations.

Technical Specifications

ACAP SupportedDocker
Model
4x ARTPEC-7 Memory 4x 1024 MB RAM, 512 MB Flash Battery backed-up real-time clock Video Video compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles H.265 (MPEG-H Part 2/HEVC) Main profile Motion JPEG Resolution 176x144/176x120 (PAL/NTSC) to 720x576/720x480 (PAL/NTSC) High definition TVI, high definition CVI and high definition analog HD (1280x720 and 1920x1080) 4x one channel for resolutions above 1080p (1920x1080)1 Frame rate 25/30 fps in all resolutions up to 1080p Up to 30 fps in quad view in full resolution 1080p 4x one channel Quad HD up to 25/30 fps 4x one channel 4K up to 15 fps Video streaming Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Quad view Image settings Rotation: 0°, 90°, 180°, 270°, de-interlace filter, Compression, color, brightness, contrast, aspect ratio correction, mirroring of images, text and image overlay, polygon privacy mask, video termination, sharpness, noise reduction Pan/Tilt/Zoom Wide range of analog PTZ cameras supported, drivers included in the firmware Up to 100 preset positions/camera, Guard tour, PTZ control queue Supports Windows compatible joysticks Compatible with Coaxitron® by Pelco Audio Audio streaming Two-way, full duplex Audio encoding 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, Configurable bit rate Audio input/output 8 analog or digital external microphone input or line input, and 4 line output Network IP address Four IP address, one per four channels Security IP address filtering, HTTPS2 encryption, IEEE 802.1x (EAP-TLS)2, network access control,user access log, multi-level user, Axis Edge Vault with Axis device ID Network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) 1. When you enable one channel for resolutions above 1080p (1920x1080), it disables channel 3 in that section. 2. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young ([email protected]).
System integration
Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Video management systems Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis’ partners available at axis.com/vms. Event conditions Device status: IP address removed, network lost, new IP address, storage failure, system ready Edge storage: recording ongoing, storage disruption I/O: manual trigger, virtual input MQTT subscribe PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready Scheduled and recurring: scheduled event Video: average bitrate degradation, live stream open, tampering Video encoder: video connected Event actions Guard tours, upload of images or video clips, notification, overlay text, preset positions, recordings, SNMP trap messages, status LED, video clips MQTT publish Data streaming Event data Analytics Applications Included AXIS Video Motion Detection, active tampering alarm Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/ acap Approvals EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KS C 9835, KS C 9832 Class A USA: FCC Part 15 Subpart B Class A Safety IEC/EN/UL 62368-1 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 Network NIST SP500-267 Cybersecurity ETSI EN 303 645, BSI IT Security Label Cybersecurity Edge security Software: Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Secure boot Network security IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3, IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3, TLS v1.2/v1.33, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall Documentation AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents, go to axis.com/support/ cybersecurity/resources To read more about Axis cybersecurity support, go to axis.com/cybersecurity 3. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young ([email protected]).
Casing
Metal casing 1U stand alone, rackmount or wallmount Color: NCS S 5502-B Sustainability PVC free
Power
max 32 W Connectors 16 pcs analog video BNC inputs 8 pcs 3.5 mm mic/line in 4 pcs 3.5 mm audio line out 1 pc 1000 BASE-TX Ethernet (RJ45) 1 pc auxiliary ethernet (RJ45) 1 pc Gbps SFP slot 4 pcs terminal block for up to 4 configurable external input/output 4 pcs terminal block for RS485/RS422 serial communication (full duplex) 1 pc DC input terminal block Storage Support for microSD/microSDHC/microSDXC card and encryption Recording to network-attached storage (NAS) For SD card and NAS recommendations see axis.com Operating conditions 0 °C to 50 °C (32 °F to 122 °F) Humidity 10–85% RH (non-condensing) Storage conditions -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) Dimensions 44 x 145 x 440 mm (1.7 x 5.7 x 17.3 in) Weight 2100 g (4.6 lb) Included accessories Installation guide, Windows® decoder 1-user license, mains power supply, mounting kit (incl 2 mount brackets and 4 rubber feet) and connector kit (8 pcs 2- pin RS485/RS422 plugs, 4 pcs 6-pin I/O plugs) Optional accessories For accessories, see axis.com Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese Warranty 5-year warranty, see axis.com/warranty

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Audio Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P7316 and what is it used for?+

The AXIS P7316 is a fixed camera from Axis Communications. The AXIS P7316 is a 16-channel video server designed for professional surveillance installations, offering flexible video management in a compact 1U rack-mountable form factor. Available in the United States through Aeon Security, an authorized Axis partner.

What are the key technical differentiators of the AXIS P7316?+

The main differentiators of the AXIS P7316 include: Qualidade de imagem superior; Easy installation; VMS integration. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P7316?+

The AXIS P7316 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Industrial security. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS P7316 have built-in artificial intelligence?+

Yes, the AXIS P7316 features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.

Is the AXIS P7316 compatible with VMS systems?+

Yes, the AXIS P7316 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

What is the warranty on the AXIS P7316?+

The AXIS P7316 comes with a 5-year Axis Communications warranty against manufacturing defects — one of the most comprehensive in the electronic security industry. Aeon Security offers specialized technical support during and after the warranty period. Contact us at [email protected].

Is the AXIS P7316 available in the United States?+

The AXIS P7316 is available on a special order basis with estimated lead times. Contact our sales team for current availability and pricing.

How can I request a quote for the AXIS P7316?+

You can request a quote by sending an email to [email protected] with the desired model and your project details. Our sales team will respond with pricing, lead time, and customized terms.
