Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

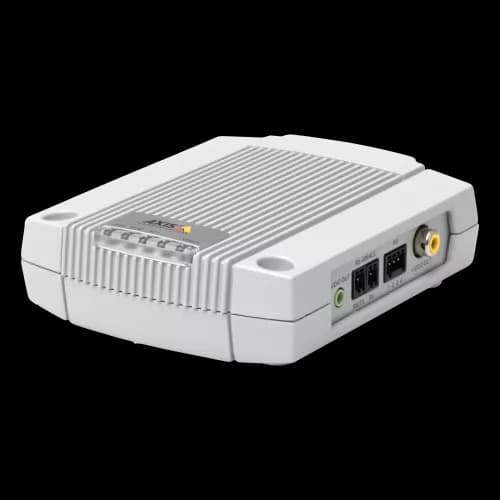

AXIS P7701 from AXIS COMMUNICATIONS - Video Decoder from left angle
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P7701 Video Decoder

Model: AXIS P7701

Understand code
Request a Quote

Professional AXIS P7701 Video Decoder solution from Axis Communications

  • zipstream
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker

Overview

  • zipstream
  • analytics
The AXIS P7701 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. It delivers superior image quality, easy installation, and seamless VMS integration through native support for leading platforms via the ONVIF protocol. The device includes a 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
www.axis.com
Video decoder
Video
compression H.264 (MPEG-4 Part 10/AVC, Baseline profile) MPEG-4 Part 2 Motion JPEG Resolutions H.264 and MPEG-4 Part 2: All resolutions up to D1 (720x480 NTSC, 720x576 PAL) Motion JPEG: All resolutions up to 720p (1280x720) Frame rate 30/25 (NTSC/PAL) fps in up to D1 resolution for all compression standards. Up to 15 fps in 720p resolution in Motion JPEG Video streaming One stream Video output NTSC 720x480, PAL 720x576 VGA (60/75 Hz) 640x480 S-VGA (60/75 Hz) 800x600 HDTV 720p 1280x720 Serial commands Forwarding of serial commands Audio Audio streaming One way
Audio
compression AAC-LC 8 kHz 32 kbit/s, 16 kHz 64 kbit/s (AAC audio included in a later firmware release) G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s
Audio input/
output Line output Network Security Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log
Supported
protocols IPv4/v6, HTTP, HTTPS*, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SSL/TLS* System integration Application Programming Interface Open API for software integration, including VAPIX® from Axis Communications available at www.axis.com Alarm triggers VAPIX alarm API Alarm events Notification via email General Casing Metal casing. Standalone or wall mount
Processor and
memory TI DM6443, 128 MB RAM, 128 MB Flash Power 8-20 V DC, max. 8.3 W Power over Ethernet IEEE 802.3af Class 3 Connectors RCA composite video output DVI-I (digital and analog) output RJ-45 10BASE-T/100BASE-TX PoE DC terminal block: power in 8-20 V DC, max. 8.3 W, I/O terminal block : 1 digital input for video selector and power out only RS-485/ RS-422 terminal block 3.5 mm audio line output, mono
Operating
conditions 0-50 °C (32-122 °F) Humidity 20-80% RH (non-condensing) Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003, VCCI Class B, AS/NZS CISPR 22, EN 60950-1, KCC Weight 318 g (0.70 lb.)
Included
accessories Power supply, mounting and connector kits, Installation Guide, CD with installation and management tools, software and User’s Manual Dimensions PWR S TAT NE T VIDE O 99 mm (3.9”) 118 mm (4.6”) DVI OUT POWE R PoE - + 33 mm (1.3”) Video output Power Network/PoE * This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org) AUDIO OUT RS-485/422 RX/TX I/O TX 1 2 3 4 VIDEO OUT Input/output ports Audio out RS-485/RS-422 serial ports DVI out Back view One side view Top view More information is available at www.axis.com Optional accessories AXIS T91A02 DIN Rail Clip 77mm Compatible products Axis video encoders Axis network cameras

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Object DetectionMotion DetectionTampering Detection

Downloads

Decoder

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Decoder

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P7701 and what is it used for?+

The AXIS P7701 is a fixed camera from Axis Communications. The AXIS P7701 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. It delivers superior image quality, easy installation, and seamless VMS integration through native support for leading platforms via the ONVIF protocol. Available in the United States through Aeon Security, an authorized Axis partner.

What are the key technical differentiators of the AXIS P7701?+

The main differentiators of the AXIS P7701 include: Qualidade de imagem superior; Easy installation; VMS integration. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P7701?+

The AXIS P7701 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P7701 compatible with VMS systems?+

Yes, the AXIS P7701 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

What is the warranty on the AXIS P7701?+

The AXIS P7701 comes with a 5-year Axis Communications warranty against manufacturing defects — one of the most comprehensive in the electronic security industry. Aeon Security offers specialized technical support during and after the warranty period. Contact us at [email protected].

Is the AXIS P7701 available in the United States?+

The AXIS P7701 is available on a special order basis with estimated lead times. Contact our sales team for current availability and pricing.

How can I request a quote for the AXIS P7701?+

You can request a quote by sending an email to [email protected] with the desired model and your project details. Our sales team will respond with pricing, lead time, and customized terms.

Is the AXIS P7701 compatible with AXIS Camera Station?+

Yes, the AXIS P7701 is compatible with AXIS Camera Station, Axis Communications' video management platform. The platform provides an intuitive interface for live viewing, recording, playback, and Axis device management.
