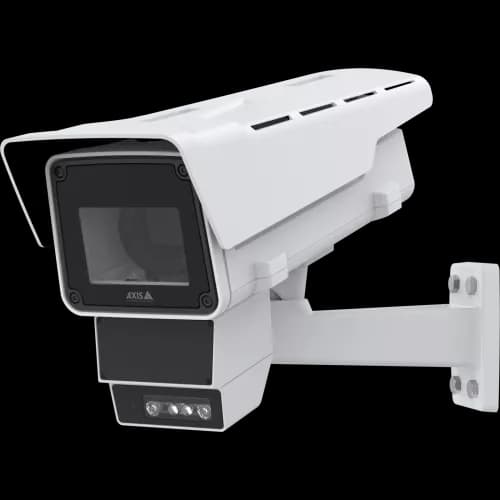

AXIS Q1686-DLE Radar-Video Fusion Camera

The AXIS Q1686-DLE is a fixed camera from Axis Communications. The AXIS Q1686-DLE is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/1.8", Lightfinder: Lightfinder 2.0, Wide Dynamic Range: Forensic WDR. Notable features: 2688x1512 resolution, Up to 50/60 fps capture, 1/1.8" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

The AXIS Q1686-DLE captures images at a resolution of 2688x1512 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of -. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

The AXIS Q1686-DLE operates in temperatures of -40 to 60 °C with a rating of IP66 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

The AXIS Q1686-DLE has a lens with a focal length of 9-50 mm mm and a horizontal field of view of 46.22-9.16 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

The AXIS Q1686-DLE is powered via Power over Ethernet (PoE class 4) with a maximum consumption of 25.5 W. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

The main differentiators of the AXIS Q1686-DLE include: 2688x1512 resolution; Up to 50/60 fps capture; 1/1.8" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

The AXIS Q1686-DLE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Transport security, Cidades inteligentes. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Yes, the AXIS Q1686-DLE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
