Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

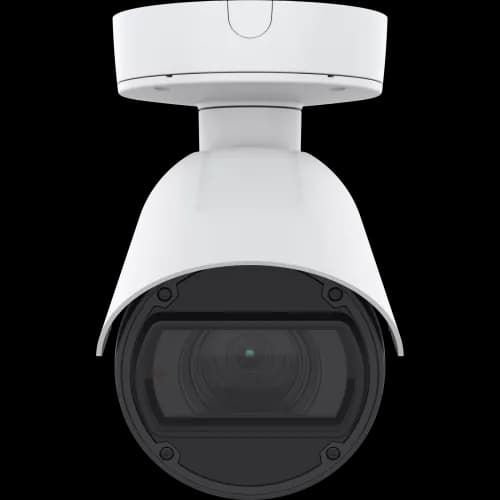

AXIS Q1785-LE from AXIS COMMUNICATIONS - IP Camera has OptimizedIR. The product is viewed from its front.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q1785-LE Network Camera

Model: AXIS Q1785-LE

Understand code
Request a Quote

Professional AXIS Q1785-LE Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q1785-LE is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/2.8" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Native ONVIF integration ensures seamless compatibility with leading VMS platforms, backed by a 5-year warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.16 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
50/60
Electronic Image Stabilization
Yes
Focal Length
4.3 - 137 mm
Optical Zoom
32
Horizontal Field of View
60 - 2.3 °
Vertical Field of View
39-1.3 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
PoE Class
3
Signed OS
Yes
Zoom remoto
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-40 to 60 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66, IP67
Designed for repainting
Yes
Sustainability
Livre de PVC
Maximum Power
13.5 W
Average Power
7.8 W

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Object DetectionMotion DetectionTampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q1785-LE and what is it used for?+

The AXIS Q1785-LE is a fixed camera from Axis Communications. The AXIS Q1785-LE is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/2.8" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q1785-LE?+

The AXIS Q1785-LE captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.16 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS Q1785-LE work in outdoor and harsh environments?+

The AXIS Q1785-LE operates in temperatures of -40 to 60 °C with a rating of IP66, IP67 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS Q1785-LE?+

The AXIS Q1785-LE features 32x optical zoom with a focal length of 4.3 - 137 mm and a horizontal field of view of 60 - 2.3 °. This long-range zoom enables detail identification at hundreds of meters, ideal for extensive perimeters and critical infrastructure.

How is the AXIS Q1785-LE powered and installed?+

The AXIS Q1785-LE is powered via Power over Ethernet (PoE class 3) with a maximum consumption of 13.5 W. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q1785-LE?+

The main differentiators of the AXIS Q1785-LE include: Full HD 1080p resolution (2 MP); Up to 50/60 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q1785-LE?+

The AXIS Q1785-LE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS Q1785-LE compatible with VMS systems?+

Yes, the AXIS Q1785-LE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
