Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

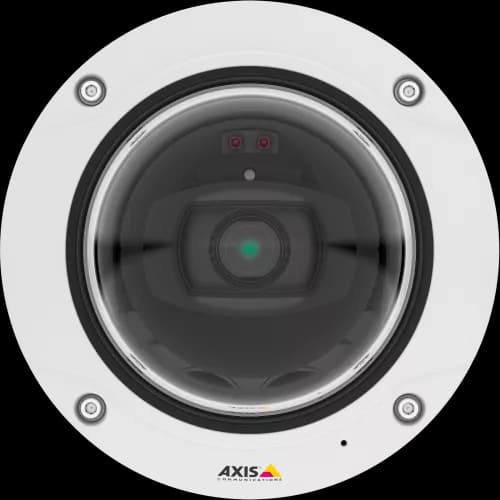

AXIS IP from AXIS COMMUNICATIONS - Camera Q3517-LV has Power with redundancy and configurable I/O ports
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q3517-LV Network Camera

Model: AXIS Q3517-LV

Understand code
Request a Quote

Professional AXIS Q3517-LV Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q3517-LV is a fixed dome network camera designed for discreet monitoring in indoor and outdoor environments. It delivers sharp color images in low light with Axis Lightfinder technology, preserves details in high-contrast scenes using Forensic WDR, and supports 24/7 operation with built-in IR illumination. Edge analytics enable real-time motion detection, while Zipstream technology optimizes bandwidth and storage usage.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/1.8"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.12 lux
Minimum Illumination (B/W)
0.02 lux
Maximum Video Resolution
3072x1728
Maximum Frames Per Second
50/60
Day/Night Functionality
Yes
Electronic Image Stabilization
Yes
Focal Length
4.3 - 8.6 mm
Horizontal Field of View
96 - 50 °
Vertical Field of View
53-29 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
PoE Class
3
Signed Operating System
Yes
Remote Focus
Yes
Zoom remoto
Yes
Built-in IR
Yes
Local Storage (memory card slot)
Yes
Operating Temperature
-10 to 50 °C
Vandal rating
IK10
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Intrusion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q3517-LV and what is it used for?+

The AXIS Q3517-LV is a fixed camera from Axis Communications. The AXIS Q3517-LV is a fixed dome network camera designed for discreet monitoring in indoor and outdoor environments. It delivers sharp color images in low light with Axis Lightfinder technology, preserves details in high-contrast scenes using Forensic WDR, and supports 24/7 operation with built-in IR illumination. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q3517-LV?+

The AXIS Q3517-LV captures images at a resolution of 3072x1728 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.12 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS Q3517-LV work in outdoor and harsh environments?+

The AXIS Q3517-LV operates in temperatures of -10 to 50 °C with a rating of - and impact resistance of IK10. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS Q3517-LV?+

The AXIS Q3517-LV has a lens with a focal length of 4.3 - 8.6 mm and a horizontal field of view of 96 - 50 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS Q3517-LV powered and installed?+

The AXIS Q3517-LV is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q3517-LV?+

The main differentiators of the AXIS Q3517-LV include: Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes; 0.12 lux minimum sensitivity; Integrated IR Lighting for Night Monitoring; H.264 compression. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q3517-LV?+

The AXIS Q3517-LV is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS Q3517-LV have built-in artificial intelligence?+

Yes, the AXIS Q3517-LV features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.
