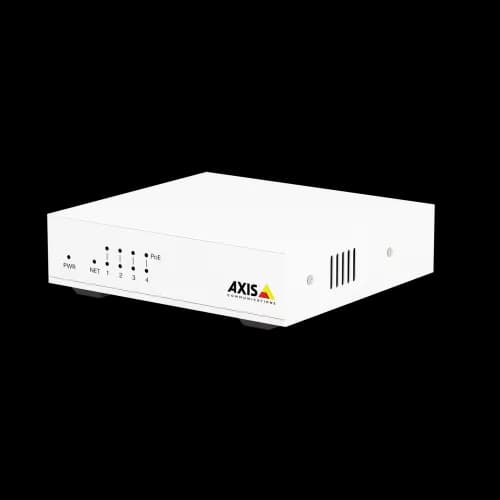

Model: AXIS D8004
Understand codeProfessional AXIS D8004 unmanaged PoE switch solution from Axis Communications
• 90 x 80 x 21 mm (3.54 x 3.15 x 0.83 in)
• Weight 172 g (0.38 lb) input 100–240 V AC, 50–60 Hz Maximum 62 W
• Power plug polarity: Center-pin positive output
• Full PoE consumption Load + full Ethernet Load 110 V: 62.4 W (214.09 BTU) 220 V: 62.5 W (214.44 BTU)
• System on 110 V: 2.0 W (6.86 BTU) 220 V: 2.3 W (7.89 BTU)
• Connectors 1x RJ45 10BASE-T/100BASE-TX 4x RJ45 10BASE-T/100BASE-TX PoE
• Conditions -10 °C to 50 °C (14 °F to 122 °F) humidity 5–95% RH (non-condensing)
• Approvals EN 55022:2010/55032:2012 + AC : 2013 class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581, FCC Part 15 subpart B class B, ICES-003 class B, IEC/EN/UL 60950-1, EN 62368-1, CE, WEEE, C-Tick/RCM
Axis standard warranty: 5 years against manufacturing defects.
The AXIS D8004 is an infrastructure device from Axis Communications. The AXIS D8004 is a 4-port unmanaged PoE switch that delivers reliable power and connectivity to networked security devices in small to medium installations. Available in the United States through Aeon Security, an authorized Axis partner.
The AXIS D8004 is an Axis Communications infrastructure device that supports the operation of IP cameras and devices. The AXIS D8004 is a 4-port unmanaged PoE switch that delivers reliable power and connectivity to networked security devices in small to medium installations. Designed for professional environments that require high availability.
The AXIS D8004 is powered via Power over Ethernet (PoE class AU). A single network cable provides data and power, simplifying installation and reducing costs.
The main differentiators of the AXIS D8004 include: Built-in edge video analytics; 5-year manufacturer warranty; Aeon Security technical support. These features position it for demanding professional electronic security applications.
The AXIS D8004 is especially suited for: Object detection, Target classification, High-risk areas. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.
Yes, the AXIS D8004 features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.
Yes, the AXIS D8004 natively integrates with the Axis Communications ecosystem, including AXIS Camera Station for centralized management, and is compatible with Axis technology partner solutions.
The AXIS D8004 comes with a 5-year Axis Communications warranty against manufacturing defects — one of the most comprehensive in the electronic security industry. Aeon Security offers specialized technical support during and after the warranty period. Contact us at [email protected].
