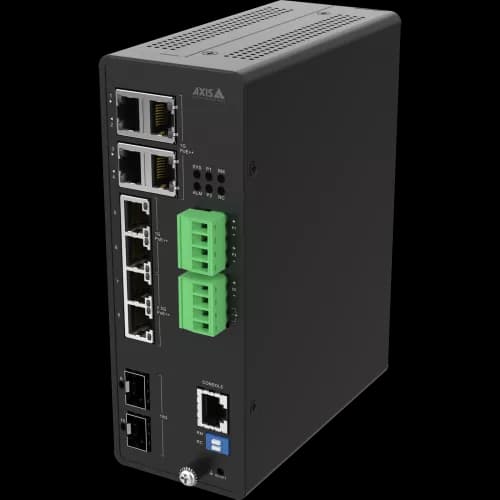

AXIS D8208-R from AXIS COMMUNICATIONS - Industrial PoE++ Switch, viewed from its left angle
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS D8208-R Industrial PoE++ Switch

Model: AXIS D8208-R

Understand code
Request a Quote

Professional AXIS D8208-R Industrial PoE++ Switch solution from Axis Communications

  • zipstream
  • analytics
⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • analytics
The AXIS D8208-R is a network switch designed for professional surveillance infrastructure with built-in edge video analytics for real-time motion and event detection in wide areas. It offers ONVIF compatibility for native integration with leading VMS platforms, HTTPS encryption for secure transmission, and remote configuration via web interface. Flexible power and mounting options enable easy indoor installation, backed by a 5-year manufacturer warranty and Aeon Security technical support.

Technical Specifications

ACAP SupportedDocker
Security
Access Control List, security port, IP Source Guard, Storm Control, Private VLAN, DHCP Snooping, ARP Inspection, HTTPS encryption, password protection
Rede
Protocolos IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP Throughput 46.130 Mpps
Operation
Conditions -40 to 60 °C (-40 °F to 140 °F) maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) humidity 5–95% RH (non-condensing)
Storage

• Conditions -40 °C to 85 °C (-40 °F to 185 °F) humidity 5–95% RH (non-condensing)

• Approvals EMC EN 55035, EN 55032 class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, IEC 62236-4, FCC part 15 subpart B class A, ICES-3(A)/NMB-3(A), IEC 62236-4, VCCI class A, RCM AS/NZS CISPR 32 class A

• Safety IEC/EN/UL 62368-1 ed. 3

Included
Installation guide accessories, din rail mounting bracket, DB-9 console cable, two mounting brackets for AXIS TQ1808-VE Surveillance Cabinet
Opcional
AXIS TQ1808-VE Surveillance Cabinet accessories power supply DIN PS56 480 W AXIS TD8901 SFP+ LC.LR.X module AXIS TD8902 SFP+ LC.SR.X module for more accessories, see axis.com
Gerenciamento

• Software AXIS Device Manager

• Warranty 5-year

• Warranty, see axis.com/garantia Export control this product is subject to export control regulations, and you should always comply with all applicable national and international export or re-export control regulations.

Available APIs

VAPIXParameterEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Motion DetectionObject DetectionIntrusion DetectionLoitering Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS D8208-R and what is it used for?+

The AXIS D8208-R is an infrastructure device from Axis Communications. The AXIS D8208-R is a network switch designed for professional surveillance infrastructure with built-in edge video analytics for real-time motion and event detection in wide areas. It offers ONVIF compatibility for native integration with leading VMS platforms, HTTPS encryption for secure transmission, and remote configuration via web interface. Available in the United States through Aeon Security, an authorized Axis partner.

What role does the AXIS D8208-R play in a security system?+

The AXIS D8208-R is an Axis Communications infrastructure device that supports the operation of IP cameras and devices. The AXIS D8208-R is a network switch designed for professional surveillance infrastructure with built-in edge video analytics for real-time motion and event detection in wide areas. It offers ONVIF compatibility for native integration with leading VMS platforms, HTTPS encryption for secure transmission, and remote configuration via web interface. Designed for professional environments that require high availability.

How is the AXIS D8208-R powered and installed?+

The AXIS D8208-R is powered via Power over Ethernet (PoE class AU, EU, JP, UK, US). A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS D8208-R?+

The main differentiators of the AXIS D8208-R include: Built-in edge video analytics; 5-year manufacturer warranty; Aeon Security technical support. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS D8208-R?+

The AXIS D8208-R is especially suited for: Object detection, Target classification, High-risk areas, Industrial security. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS D8208-R compatible with existing Axis systems?+

Yes, the AXIS D8208-R natively integrates with the Axis Communications ecosystem, including AXIS Camera Station for centralized management, and is compatible with Axis technology partner solutions.

What is the warranty on the AXIS D8208-R?+

The AXIS D8208-R comes with a 5-year Axis Communications warranty against manufacturing defects — one of the most comprehensive in the electronic security industry. Aeon Security offers specialized technical support during and after the warranty period. Contact us at [email protected].

Is the AXIS D8208-R available in the United States?+

The AXIS D8208-R is available on a special order basis with estimated lead times. Contact our sales team for current availability and pricing.
