Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

AXIS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P5415-E PTZ Network Camera

Model: AXIS P5415-E

Understand code
Request a Quote

Professional AXIS P5415-E PTZ Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P5415-E is a PTZ camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with a 1/2.8" CMOS sensor, Axis Lightfinder technology for low-light performance, and WDR for high-contrast scenes, plus built-in edge video analytics and H.264 compression. The camera integrates natively with leading VMS platforms via ONVIF and includes a 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Wide dynamic range
WDR
Minimum illumination/light sensitivity (Color)
0.5 lux
Minimum illumination/light sensitivity (B&W)
0.04 lux
Local Storage (memory card slot)
Yes
Operating Temperature
-20 to 50 °C
Ready for external use
Yes
Vandal rating
IK07
IP Rating
IP66
Designed for repainting
Yes
Maximum Video Resolution
1920x1080
Maximum frames per second
25/30
Funcionalidade Dia e Noite
Yes
Focal Length
4.7 - 84.6 mm
Horizontal Field of View
59 - 4 °
Vertical Field of View
35 - 2 °
Pan Range
+/-135
Tilt Range
0-90
Ronda de guarda
limited guard tour
Optical Zoom
18
Digital Zoom
12
H.264
Baseline, Main
Audio Support
Yes
Audio Detection
Yes
Alarm Inputs/Outputs
4
PoE Class
4

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Tampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Checklist

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P5415-E and what is it used for?+

The AXIS P5415-E is a PTZ camera from Axis Communications. The AXIS P5415-E is a PTZ camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with a 1/2.8" CMOS sensor, Axis Lightfinder technology for low-light performance, and WDR for high-contrast scenes, plus built-in edge video analytics and H.264 compression. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P5415-E?+

The AXIS P5415-E captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.5 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS P5415-E work in outdoor and harsh environments?+

The AXIS P5415-E operates in temperatures of -20 to 50 °C with a rating of IP66 and impact resistance of IK07. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P5415-E?+

The AXIS P5415-E features 18x optical zoom with a focal length of 4.7 - 84.6 mm and a horizontal field of view of 59 - 4 °. This intermediate zoom offers versatility between panoramic coverage and detail identification.

How is the AXIS P5415-E powered and installed?+

The AXIS P5415-E is powered via Power over Ethernet (PoE class 4). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P5415-E?+

The main differentiators of the AXIS P5415-E include: Full HD 1080p resolution (2 MP); 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes; H.264 compression. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P5415-E?+

The AXIS P5415-E is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P5415-E compatible with VMS systems?+

Yes, the AXIS P5415-E is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

IP Camera AXIS P5532-E is outdoor-ready: IP66 and NEMA 4X rating sand has 29x optical zoom. from AXIS COMMUNICATIONS

AXIS P5532-E

AXIS P5532-E PTZ Network Camera

View specifications →

AXIS Q8642-E from AXIS COMMUNICATIONS - PT Thermal IP Camera from left angle

AXIS Q8642-E

AXIS Q8642-E PT Thermal Network Camera

View specifications →

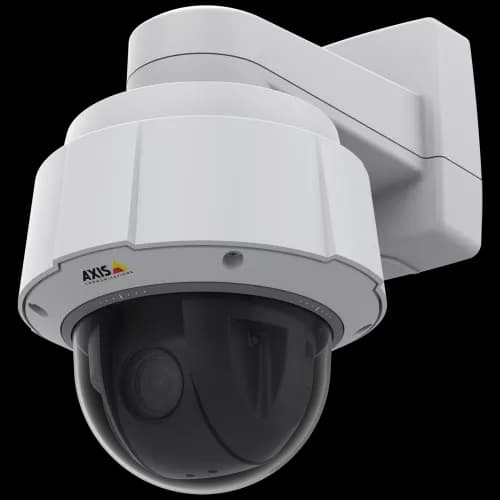

AXIS IP from AXIS COMMUNICATIONS - Camera Q6075-E has TPM, FIPS 140-2 level 2 certified
