Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

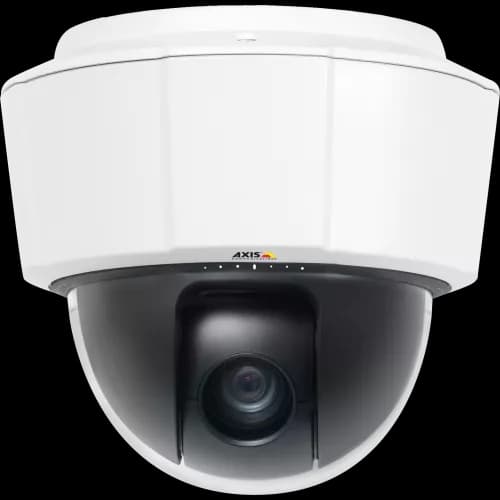

AXIS P5515 from AXIS COMMUNICATIONS - PTZ is an indoor IP camera with Zipstream technology. The camera is viewed from its front.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P5515 PTZ Network Camera

Model: AXIS P5515

Understand code
Request a Quote

Professional AXIS P5515 PTZ Network Camera solution from Axis Communications

  • onvif
  • zipstream
  • edge storage
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • onvif
  • zipstream
  • edge storage
  • analytics
The AXIS P5515 is a PTZ camera from Axis Communications, designed for professional security and surveillance applications. It delivers Full HD 1080p resolution at up to 25/30 fps with a 1/2.3" CMOS sensor, Axis Lightfinder technology for low-light performance, and WDR for high-contrast scenes. The camera supports native integration with leading VMS platforms via ONVIF and includes a 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.3"
Wide Dynamic Range
Dynamic Contrast
Minimum Illumination/Light Sensitivity (Color)
0.7 lux
Minimum Illumination/Light Sensitivity (B&W)
0.08 lux
Local Storage (memory card slot)
Yes
Operating Temperature
0 to 50 °C
IP Rating
IP51
Designed for repainting
Yes
Maximum Video Resolution
1920x1080
Frame Rate (fps)
25 / 30
Funcionalidade Dia e Noite
Yes
Focal Length
3.8 - 42.9 mm
Lente varifocal
Off
Aperture
1.4 - 2.1
Horizontal Field of View
59.2 - 5.2 °
Vertical Field of View
33.3 - 3.1 °
Detection Range: Human (1.5px)
0.00 m
Detection Range: Vehicle (1.5px)
0.00 m
Pan Range
+/-180
Tilt Range
180
Optical Zoom
12
Digital Zoom
10
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
Two-way Audio
Yes
Audio Detection
Yes
Alarm Inputs/Outputs
4
Perfil ONVIF
G
Camera Application Platform
Yes
Video Motion Detection
Yes
Power over Ethernet
Yes
PoE Class
3
Criptografia HTTPS
Yes
IEEE 802.1X
Yes

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Motion DetectionTampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Checklist

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis P5512 Dome Kit, P5514 Dome Kit And P5515 Dome Kit

Other•PDF
ViewDownload

Eol Statement For P5515 And P5515 E Ptz Dome Network Camera

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P5515 and what is it used for?+

The AXIS P5515 is a PTZ camera from Axis Communications. The AXIS P5515 is a PTZ camera from Axis Communications, designed for professional security and surveillance applications. It delivers Full HD 1080p resolution at up to 25/30 fps with a 1/2.3" CMOS sensor, Axis Lightfinder technology for low-light performance, and WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P5515?+

The AXIS P5515 captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.7 lux lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS P5515 work in outdoor and harsh environments?+

The AXIS P5515 operates in temperatures of 0 to 50 °C with a rating of IP51 and impact resistance of -. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS P5515?+

The AXIS P5515 features 12x optical zoom with a focal length of 3.8 - 42.9 mm and a horizontal field of view of 59.2 - 5.2 °. This intermediate zoom offers versatility between panoramic coverage and detail identification.

How is the AXIS P5515 powered and installed?+

The AXIS P5515 is powered via Power over Ethernet (PoE class 3) with a maximum consumption of Yes. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P5515?+

The main differentiators of the AXIS P5515 include: Full HD 1080p resolution (2 MP); Capture up to 25 / 30 fps; 1/2.3" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P5515?+

The AXIS P5515 is especially suited for: Large Area Monitoring, Rastreamento de objetos, Active Surveillance. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P5515 compatible with VMS systems?+

Yes, the AXIS P5515 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS P5514 from AXIS COMMUNICATIONS - PTZ IP Camera is a cost-effective indoor HDTV with 12x zoom in a compact design.

AXIS P5514

AXIS P5514 PTZ Network Camera

View specifications →

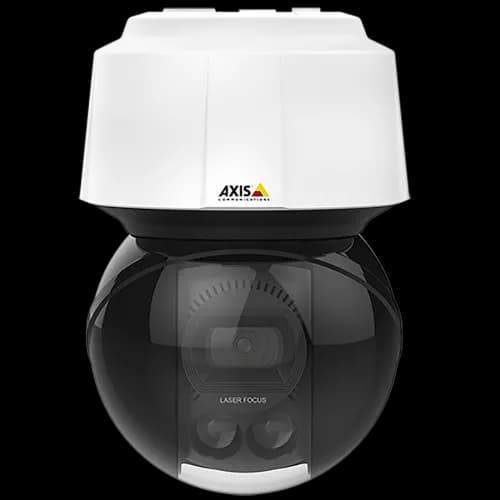

AXIS IP from AXIS COMMUNICATIONS - Camera Q6154-E has Sharpdome technology with speed dry
