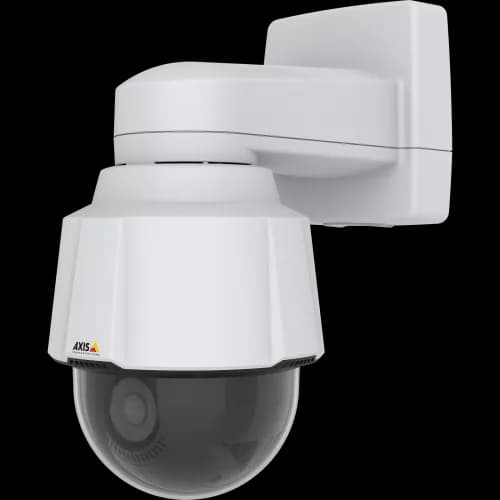

AXIS IP from AXIS COMMUNICATIONS - Camera P5655-E has HDTV 1080p with 32x optical zoom and Focus recall and EIS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty
EIS
EIS
Electronic image stabilization for smooth video even with vibration
Wide Dynamic Range (WDR)
Wide Dynamic Range (WDR)
Balances bright and dark areas for sharp images in challenging lighting conditions
Lightfinder
Lightfinder
Technology that captures vivid colors even in extremely low-light environments

AXIS P5655-E PTZ Network Camera

Model: AXIS P5655-E

Understand code
Request a Quote

Professional AXIS P5655-E PTZ Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On request⭐Best SellerACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P5655-E is a PTZ camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/2.8" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Native ONVIF integration ensures compatibility with leading VMS platforms, backed by a 5-year warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Lightfinder
Lightfinder 2.0
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.1 lux
Minimum Illumination (B/W)
0.01 lux
Signed OS
Yes
Secure Boot
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66
Designed for repainting
Yes
Autotracking version
Autotracking 2
Maximum Video Resolution
1920x1080
Frame Rate (fps)
50/60
Day/Night Functionality
Yes
Electronic Image Stabilization
Yes
Focal Length
4.3-137.6 mm
Horizontal Field of View
58.3-2.4 °
Vertical Field of View
35.5-1.4 °
Pan Range
360 endless
Tilt Range
180
Ronda de guarda
limited guard tour
Optical Zoom
32
Digital Zoom
12
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
Audio Support
Yes
Audio Detection
Yes
Alarm Inputs/Outputs
4
PoE Class
4

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Motion DetectionTampering DetectionAudio DetectionIntrusion Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P5655-E and what is it used for?+

The AXIS P5655-E is a PTZ camera from Axis Communications. The AXIS P5655-E is a PTZ camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/2.8" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P5655-E?+

The AXIS P5655-E captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.1 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS P5655-E work in outdoor and harsh environments?+

The AXIS P5655-E operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of IK10. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P5655-E?+

The AXIS P5655-E features 32x optical zoom with a focal length of 4.3-137.6 mm and a horizontal field of view of 58.3-2.4 °. This long-range zoom enables detail identification at hundreds of meters, ideal for extensive perimeters and critical infrastructure.

How is the AXIS P5655-E powered and installed?+

The AXIS P5655-E is powered via Power over Ethernet (PoE class 4). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P5655-E?+

The main differentiators of the AXIS P5655-E include: Full HD 1080p resolution (2 MP); Up to 50/60 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P5655-E?+

The AXIS P5655-E is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P5655-E compatible with VMS systems?+

Yes, the AXIS P5655-E is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

M5074 PTZ Camera black and white with a AXIS LOGO viewed from its left from AXIS COMMUNICATIONS

AXIS M5075

AXIS M5075 PTZ Camera

View specifications →

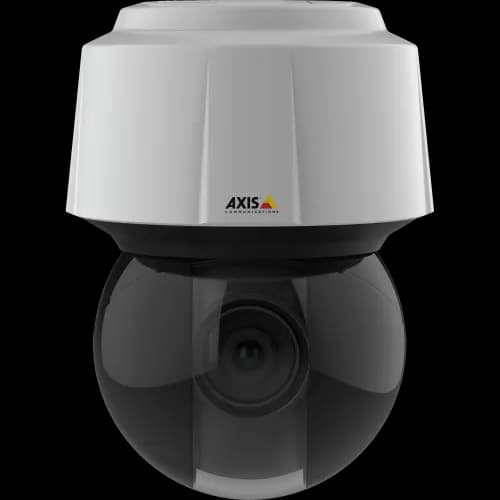

AXIS Q6115-E from AXIS COMMUNICATIONS - compact PTZ dome with Sharp Dome technology. The product is viewed from its front.

AXIS Q6115-E

AXIS Q6115-E PTZ Network Camera

View specifications →

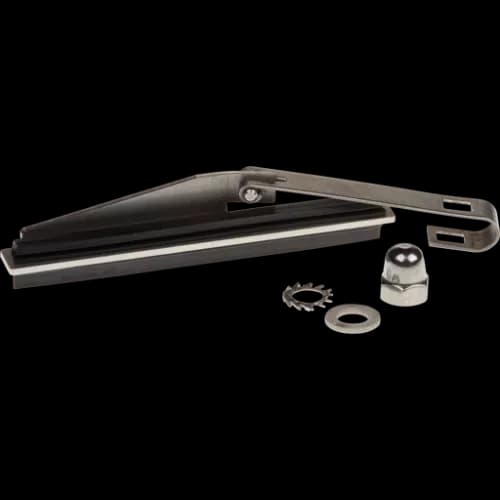

AXIS Q8665-E from AXIS COMMUNICATIONS - PTZ network camera - product image

AXIS Q8665-E

AXIS Q8665-E/-LE Wiper Blade

View specifications →

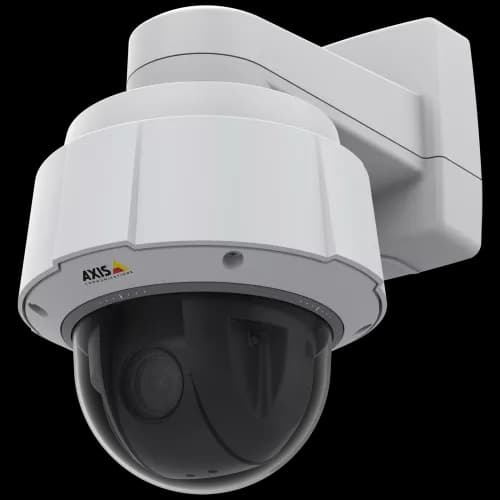

AXIS IP from AXIS COMMUNICATIONS - Camera 6074-Ehas HDTV 1080p with 32x optical zoom
