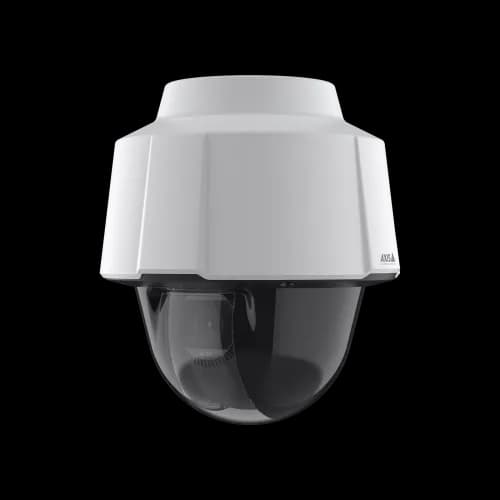

AXIS P5676-LE from AXIS COMMUNICATIONS - PTZ network camera - product image
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P5676-LE PTZ Camera

Model: AXIS P5676-LE

Understand code
Request a Quote

Professional AXIS P5676-LE PTZ Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On request🔥TrendingACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P5676-LE is a ptz camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.9", Lightfinder: Lightfinder 2.0, Wide Dynamic Range: Forensic WDR. Notable features: 2688x1512 resolution, Up to 50/60 fps capture, 1/2.9" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.9"
Lightfinder
Lightfinder 2.0
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.11 lux
Minimum Illumination (B/W)
0.03 lux
Signed OS
Yes
Secure Boot
Yes
Built-in IR
Yes
IR otimizado
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
Vandal rating
IK10
IP Rating
IP66
Designed for repainting
Yes
Autotracking version
Autotracking 2
Orientation assistance
orientation aid PTZ
Maximum Video Resolution
2688x1512
Frame Rate (fps)
50/60
Day/Night Functionality
Yes
Electronic Image Stabilization
Yes
Focal Length
4.6-133 mm
Horizontal Field of View
57.1-2.1 °
Vertical Field of View
34.4-1.2 °
Pan Range
360 endless
Tilt Range
0-90
Ronda de guarda
limited guard tour
Optical Zoom
30
Digital Zoom
12
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
Audio Support
Yes
Audio Detection
Yes
Alarm Inputs/Outputs
4
PoE Class
6

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Motion DetectionTampering DetectionAudio Detection

Downloads

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P5676-LE and what is it used for?+

The AXIS P5676-LE is a PTZ camera from Axis Communications. The AXIS P5676-LE is a ptz camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.9", Lightfinder: Lightfinder 2.0, Wide Dynamic Range: Forensic WDR. Notable features: 2688x1512 resolution, Up to 50/60 fps capture, 1/2.9" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P5676-LE?+

The AXIS P5676-LE captures images at a resolution of 2688x1512 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.11 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS P5676-LE work in outdoor and harsh environments?+

The AXIS P5676-LE operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of IK10. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P5676-LE?+

The AXIS P5676-LE features 30x optical zoom with a focal length of 4.6-133 mm and a horizontal field of view of 57.1-2.1 °. This long-range zoom enables detail identification at hundreds of meters, ideal for extensive perimeters and critical infrastructure.

How is the AXIS P5676-LE powered and installed?+

The AXIS P5676-LE is powered via Power over Ethernet (PoE class 6). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P5676-LE?+

The main differentiators of the AXIS P5676-LE include: 2688x1512 resolution; Up to 50/60 fps capture; 1/2.9" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P5676-LE?+

The AXIS P5676-LE is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance, Cidades inteligentes. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P5676-LE compatible with VMS systems?+

Yes, the AXIS P5676-LE is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS M5526-E from AXIS COMMUNICATIONS - PTZ Camera

AXIS M5526-E

AXIS M5526-E PTZ Camera

View specifications →

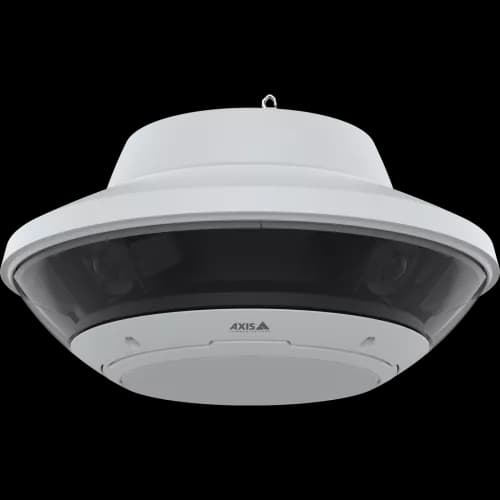

White AXIS Q6020-E Panoramic Camera viewed from its front from AXIS COMMUNICATIONS

AXIS Q6020-E

AXIS Q6020-E Panoramic Camera

View specifications →

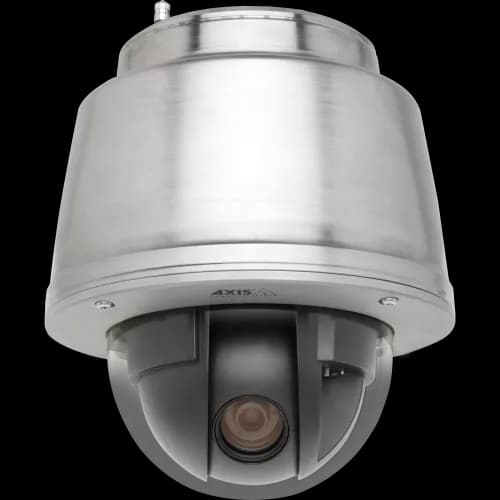

IP Camera AXIS Q6042-S has marine-grade stainless steel and extended D1 resolution and 36x optical zoom. from AXIS COMMUNICATIONS
