  7. AXIS Q6045-E

Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

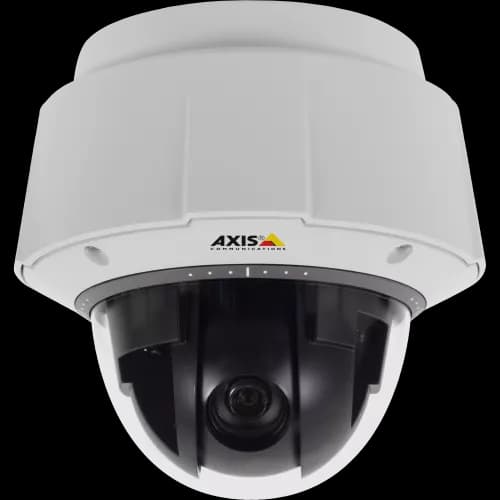

IP Camera AXIS Q6045-E Mk II has high power over ethernet and is vandal-resistant. It also has shock detection from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q6045-E Mk II PTZ Network Camera

Model: AXIS Q6045-E

Understand code
Request a Quote

Professional AXIS Q6045-E Mk II PTZ Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q6045-E is a PTZ camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 60/50 fps capture using a 1/2.8" CMOS sensor, Axis Lightfinder for low-light performance, and WDR for high-contrast scenes. It offers native integration with leading VMS platforms via ONVIF and includes a 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Wide Dynamic Range (WDR)
Dynamic Capture
Minimum Illumination (Color)
0.3 lux
Minimum Illumination (B/W)
0.03 lux
Local Storage (Memory Card)
Yes
Operating Temperature
-50 to 50 °C
Pronto para uso externo
Yes
Vandal rating
IK10
IP Rating
IP66
Autotracking version
Autotracking 1
Maximum Video Resolution
1920x1080
Frame Rate (fps)
60/50
Day/Night Functionality
Yes
Focal Length
4.44 - 142.6 mm
Horizontal Field of View
62.8 - 2.23 °
Vertical Field of View
36.8 - 1.3 °
Pan Range
360 endless
Tilt Range
220
Optical Zoom
32
Digital Zoom
12
H.264
Baseline, Main
Alarm Inputs/Outputs
0/0
PoE Class
High PoE

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Tampering DetectionAudio Detection

Downloads

Camera

Other•PDF
ViewDownload

Configuration Guide

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Example Images Of Q6045 Mk Ii Compared With Q6045

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis Q6045 E Ze Mkii Ptz Network Cameras

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q6045-E and what is it used for?+

The AXIS Q6045-E is a PTZ camera from Axis Communications. The AXIS Q6045-E is a PTZ camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 60/50 fps capture using a 1/2.8" CMOS sensor, Axis Lightfinder for low-light performance, and WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q6045-E?+

The AXIS Q6045-E captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 60 fps. Minimum sensitivity of 0.3 lux lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS Q6045-E work in outdoor and harsh environments?+

The AXIS Q6045-E operates in temperatures of -50 to 50 °C with a rating of IP66 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS Q6045-E?+

The AXIS Q6045-E features 32x optical zoom with a focal length of 4.44 - 142.6 mm and a horizontal field of view of 62.8 - 2.23 °. This long-range zoom enables detail identification at hundreds of meters, ideal for extensive perimeters and critical infrastructure.

How is the AXIS Q6045-E powered and installed?+

The AXIS Q6045-E is powered via Power over Ethernet (PoE class High PoE). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q6045-E?+

The main differentiators of the AXIS Q6045-E include: Full HD 1080p resolution (2 MP); Up to 60/50 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q6045-E?+

The AXIS Q6045-E is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS Q6045-E compatible with VMS systems?+

Yes, the AXIS Q6045-E is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
