Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

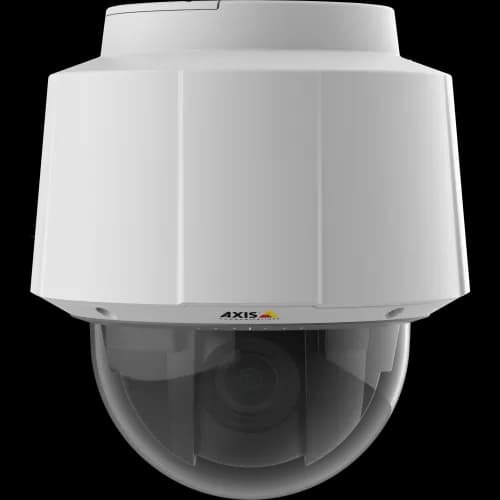

AXIS Q6052 from AXIS COMMUNICATIONS - indoor PTZ camera with 36x zoom and Lightfinder technology. The camera is viewed from its front.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q6052 PTZ Network Camera

Model: AXIS Q6052

Understand code
Request a Quote

Professional AXIS Q6052 PTZ Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q6052 is a PTZ camera designed for professional security and surveillance. It features a 1/2.8" CMOS sensor with Axis Lightfinder for superior low-light performance and WDR to handle high-contrast scenes. Native ONVIF integration ensures seamless compatibility with leading VMS platforms, backed by a 5-year warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.15 lux
Minimum Illumination (B/W)
0.008 lux
Operating Temperature
0 to 50 °C
IP Rating
IP52
Designed for repainting
Yes
Maximum Video Resolution
720x576 / 720x480
Frame Rate (fps)
50 / 60
Day/Night Functionality
Yes
Electronic Image Stabilization
Yes
Focal Length
3.3 - 119 mm
Horizontal Field of View
47 - 1.5 °
Vertical Field of View
35.5 - 1.1 °
Pan Range
360 endless
Tilt Range
180
Optical Zoom
36
Digital Zoom
12
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
Audio Detection
Yes
Alarm Inputs/Outputs
4
PoE Class
4

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Tampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis Q6052 E

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q6052 and what is it used for?+

The AXIS Q6052 is a PTZ camera from Axis Communications. The AXIS Q6052 is a PTZ camera designed for professional security and surveillance. It features a 1/2.8" CMOS sensor with Axis Lightfinder for superior low-light performance and WDR to handle high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q6052?+

The AXIS Q6052 captures images at a resolution of 720x576 / 720x480 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.15 lux.

Does the AXIS Q6052 work in outdoor and harsh environments?+

The AXIS Q6052 operates in temperatures of 0 to 50 °C with a rating of IP52 and impact resistance of -. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS Q6052?+

The AXIS Q6052 features 36x optical zoom with a focal length of 3.3 - 119 mm and a horizontal field of view of 47 - 1.5 °. This long-range zoom enables detail identification at hundreds of meters, ideal for extensive perimeters and critical infrastructure.

How is the AXIS Q6052 powered and installed?+

The AXIS Q6052 is powered via Power over Ethernet (PoE class 4). A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q6052?+

The main differentiators of the AXIS Q6052 include: 720x576 resolution; Capture up to 50 / 60 fps; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q6052?+

The AXIS Q6052 is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance, Security in transports. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS Q6052 compatible with VMS systems?+

Yes, the AXIS Q6052 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
