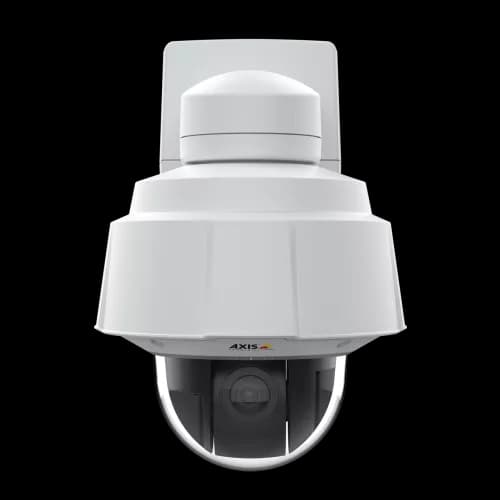

AXIS Q6078-E from AXIS COMMUNICATIONS - PTZ Camera viewed from front
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q6078-E PTZ Camera

Model: AXIS Q6078-E

Understand code
Request a Quote

Professional AXIS Q6078-E PTZ Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q6078-E is a ptz camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.5", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 4 resolution, Up to 50/60 fps capture, 1/2.5" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.5"
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.2 lux
Minimum Illumination (B/W)
0.06 lux
Signed OS
Yes
Secure Boot
Yes
TPM
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-50 to 50 °C
Pronto para uso externo
Yes
Vandal rating
IK10
IP Rating
IP66, IP67
Designed for repainting
Yes
Autotracking version
Autotracking 2
Orientation assistance
orientation aid PTZ
Maximum Video Resolution
3840x2160
Frame Rate (fps)
50/60
Day/Night Functionality
Yes
Electronic Image Stabilization
Yes
Focal Length
4.4 - 88.4 mm
Horizontal Field of View
68.3 - 4.20 °
Vertical Field of View
42.1-2.34 °
Pan Range
360 endless
Tilt Range
220
Ronda de guarda
preset position tour
Optical Zoom
20
Digital Zoom
12
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
Audio Support
Yes
PoE Class
High PoE

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Tampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Dimension Drawing Axis Q6078 E Ptz Network Camera

Other•PDF
ViewDownload

Comparison

Other•PDF
ViewDownload

Comparison

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q6078-E and what is it used for?+

The AXIS Q6078-E is a PTZ camera from Axis Communications. The AXIS Q6078-E is a ptz camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2.5", Lightfinder: -, Wide Dynamic Range: WDR. Notable features: 4 resolution, Up to 50/60 fps capture, 1/2.5" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q6078-E?+

The AXIS Q6078-E captures images at a resolution of 3840x2160 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.2 lux. This 4K resolution enables facial identification at distances exceeding 20 meters and license plate reading.

Does the AXIS Q6078-E work in outdoor and harsh environments?+

The AXIS Q6078-E operates in temperatures of -50 to 50 °C with a rating of IP66, IP67 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS Q6078-E?+

The AXIS Q6078-E features 20x optical zoom with a focal length of 4.4 - 88.4 mm and a horizontal field of view of 68.3 - 4.20 °. This long-range zoom enables detail identification at hundreds of meters, ideal for extensive perimeters and critical infrastructure.

How is the AXIS Q6078-E powered and installed?+

The AXIS Q6078-E is powered via Power over Ethernet (PoE class High PoE). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q6078-E?+

The main differentiators of the AXIS Q6078-E include: 4 resolution; Up to 50/60 fps capture; 1/2.5" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q6078-E?+

The AXIS Q6078-E is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS Q6078-E compatible with VMS systems?+

Yes, the AXIS Q6078-E is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

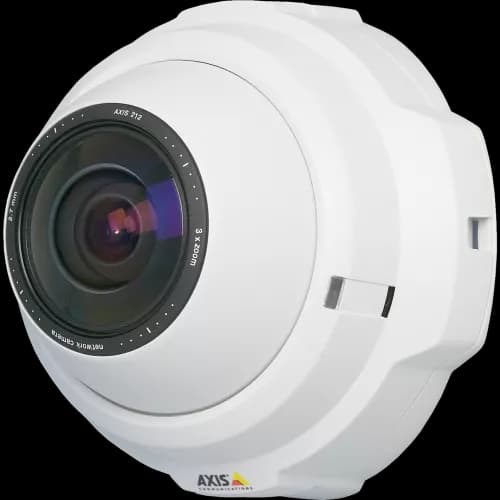

AXIS 212 PTZ - câmera PTZ de segurança IP profissional descontinuada pela Axis Communications
