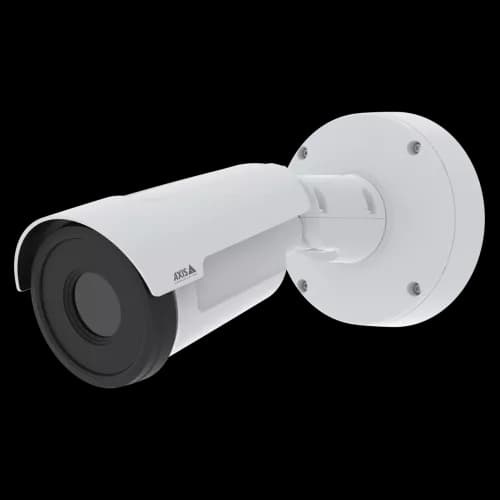

AXIS Q1971-E Thermal Camera

The AXIS Q1971-E is a thermal camera from Axis Communications. The AXIS Q1971-E is a thermal network camera engineered for 24/7 perimeter detection and verification in all lighting and weather conditions. With high thermal sensitivity, multiple lens options, and built-in analytics, it delivers reliable threat detection where conventional cameras fail. Available in the United States through Aeon Security, an authorized Axis partner.

The AXIS Q1971-E has a thermal sensitivity (NETD) of <20mK @ 25C, F1.0 with a thermal sensor of 384x288. It works perfectly in total darkness, fog, and smoke. Ideal for perimeter intrusion detection, fire prevention, and industrial process monitoring.

The AXIS Q1971-E captures images at a resolution of 384x288 using a Uncooled Microbolometer sensor, at up to 8.3 fps. In thermal cameras, this resolution provides precise detection through temperature differential.

The AXIS Q1971-E operates in temperatures of -40 to 60 °C with a rating of IP66,IP67. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

The AXIS Q1971-E has a lens with a focal length of 7 / 25 / 7 / 19 / 19 / 35 / 35 / 25 / 13 / 13 mm and a horizontal field of view of 55 / 15 / 55 / 19 / 19 / 10.5 / 10.5 / 15 / 29 / 29 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

The AXIS Q1971-E is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

The main differentiators of the AXIS Q1971-E include: Capture up to 8.3 / 30 / 30 / 30 / 8.3 / 30 / 8.3 / 8.3 / 8.3 / 30 fps; H.264 compression; Built-in edge video analytics; 55 / 15 / 55 / 19 / 19 / 10.5 / 10.5 / 15 / 29 / 29 ° field of view; PoE power (class 3). These features position it for demanding professional electronic security applications.

The AXIS Q1971-E is especially suited for: 24/7 intrusion detection, Temperature monitoring, Low-visibility areas. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.
