Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

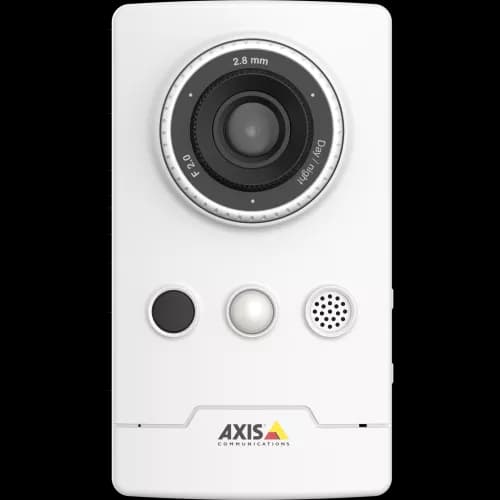

AXIS M1065-LW from AXIS COMMUNICATIONS - IP camera with edge storage. The camera is viewed from its front.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M1065-LW Network Camera

Model: AXIS M1065-LW

Understand code
Request a Quote

Professional AXIS M1065-LW Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAP
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M1065-LW is a fixed camera designed for reliable indoor and outdoor security surveillance. It delivers Full HD 1080p resolution with a 1/3" CMOS sensor, Axis Lightfinder for clear low-light performance, and WDR to handle high-contrast scenes. Native ONVIF integration ensures seamless compatibility with leading video management systems, backed by a 5-year warranty.

Technical Specifications

ACAP Supported
Image Sensor
CMOS
Sensor Size
1/3"
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.25 lux
Minimum Illumination (B/W)
0.05 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
25/30
Focal Length
2.8 mm
Horizontal Field of View
110 °
Vertical Field of View
61 °
Montagem da lente
M12
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
Sem fio (Wi-Fi)
Yes
Signed OS
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 40 °C
Sustainability
Livre de PVC
Maximum power
5.0 W
Average power
2.7 W
DC input voltage
4.75-5.25 V

Available APIs

VAPIXParameterVideoEvents

Security

HTTPSPassword protection

Networking

IPv4HTTPS

Video Analytics

Motion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Decl Uk M1065 Lw En 2211

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M1065-LW and what is it used for?+

The AXIS M1065-LW is a fixed camera from Axis Communications. The AXIS M1065-LW is a fixed camera designed for reliable indoor and outdoor security surveillance. It delivers Full HD 1080p resolution with a 1/3" CMOS sensor, Axis Lightfinder for clear low-light performance, and WDR to handle high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M1065-LW?+

The AXIS M1065-LW captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.25 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS M1065-LW work in outdoor and harsh environments?+

The AXIS M1065-LW operates in temperatures of 0 to 40 °C with a rating of - and impact resistance of -. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS M1065-LW?+

The AXIS M1065-LW has a lens with a focal length of 2.8 mm and a horizontal field of view of 110 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M1065-LW powered and installed?+

The AXIS M1065-LW is powered via Power over Ethernet (PoE class -) with a maximum consumption of 5.0 W. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M1065-LW?+

The main differentiators of the AXIS M1065-LW include: Full HD 1080p resolution (2 MP); Up to 25/30 fps capture; 1/3" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M1065-LW?+

The AXIS M1065-LW is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS M1065-LW secure against cyber attacks?+

The AXIS M1065-LW incorporates built-in cybersecurity features from Axis Communications, including Axis Edge Vault for device identity protection, signed firmware to prevent unauthorized software, and end-to-end encryption. Axis Communications follows the NIST secure development model, ensuring protection against cyber threats from manufacturing.

Related Products

AXIS P3224-LVE from AXIS COMMUNICATIONS - Mk II is an IP camera for outdoor use. The camera has Lightfinder and Zipstream technology.

AXIS P3224-LVE

AXIS P3224-LVE Mk II Network Camera

View specifications →

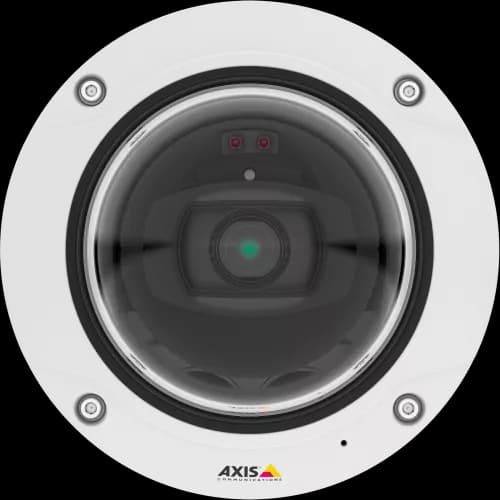

AXIS IP from AXIS COMMUNICATIONS - Camera Q3517-LV has Power with redundancy and configurable I/O ports

AXIS Q3517-LV

AXIS Q3517-LV Network Camera

View specifications →

AXIS IP from AXIS COMMUNICATIONS - Camera M3046-V has Two lens options: 2.4 mm or 1.8 mm

AXIS M3046-V

AXIS M3046-V Network Camera

View specifications →

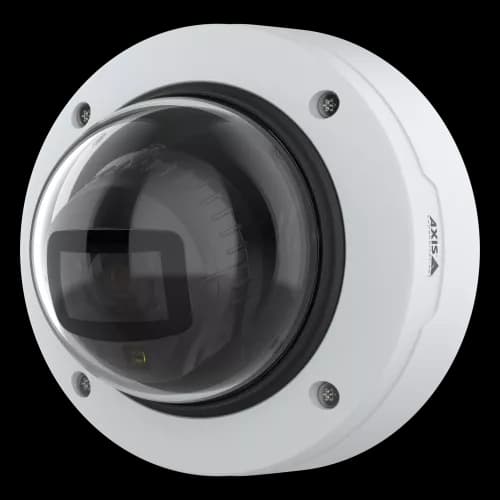

AXIS P3275-LV from Axis Communications - dome IP camera - product image
