Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

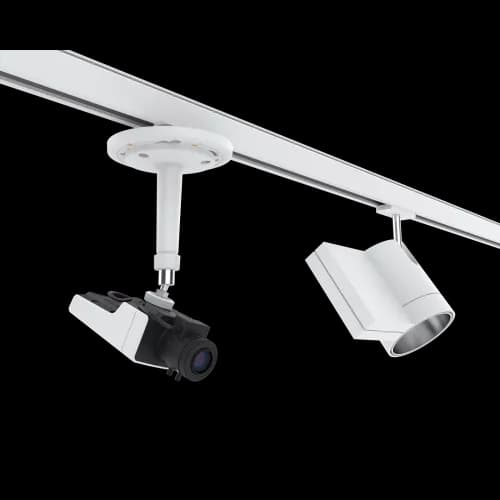

AXIS M1125 from AXIS COMMUNICATIONS - box IP camera - product image
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M1125 Network Camera

Model: AXIS M1125

Understand code
Request a Quote

Professional AXIS M1125 Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAP
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M1125 is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 25/30 fps capture using a 1/3" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Native ONVIF integration ensures compatibility with leading VMS platforms, backed by a 5-year warranty.

Technical Specifications

ACAP Supported
Image Sensor
CMOS
Sensor Size
1/3"
Wide Dynamic Range (WDR)
Forensic Capture
Minimum Illumination (Color)
0.25 lux
Minimum Illumination (B/W)
0.05 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
25/30
Focal Length
3 - 10.5 mm
Horizontal Field of View
91 - 32 °
Vertical Field of View
49 - 18 °
Montagem da lente
CS
Replaceable lens
Yes
Axis Zipstream
Yes
H.264
Baseline, High, Main
PoE Class
2
Signed OS
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-20 to 50 °C
Sustainability
Livre de PVC
DC input voltage
8-28 V

Available APIs

VAPIXParameterVideoEvents

Security

HTTPSPassword protection

Networking

IPv4HTTPS

Video Analytics

Motion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Specifications

Other•PDF
ViewDownload

Specifications

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M1125 and what is it used for?+

The AXIS M1125 is a fixed camera from Axis Communications. The AXIS M1125 is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 25/30 fps capture using a 1/3" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M1125?+

The AXIS M1125 captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.25 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS M1125 work in outdoor and harsh environments?+

The AXIS M1125 operates in temperatures of -20 to 50 °C with a rating of - and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS M1125?+

The AXIS M1125 has a lens with a focal length of 3 - 10.5 mm and a horizontal field of view of 91 - 32 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M1125 powered and installed?+

The AXIS M1125 is powered via Power over Ethernet (PoE class 2) with a maximum consumption of -. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M1125?+

The main differentiators of the AXIS M1125 include: Full HD 1080p resolution (2 MP); Up to 25/30 fps capture; 1/3" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M1125?+

The AXIS M1125 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Retail loss prevention, Banking security. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS M1125 secure against cyber attacks?+

The AXIS M1125 incorporates built-in cybersecurity features from Axis Communications, including Axis Edge Vault for device identity protection, signed firmware to prevent unauthorized software, and end-to-end encryption. Axis Communications follows the NIST secure development model, ensuring protection against cyber threats from manufacturing.

Related Products

AXIS P3375-LVE from AXIS COMMUNICATIONS - IP Camera from front

AXIS P3375-LVE

AXIS P3375-LVE Network Camera

View specifications →

AXIS P8221 from AXIS COMMUNICATIONS - Network I/O Audio Module, viewed from its left angle

AXIS P8221

AXIS P8221 I/O Audio Module

View specifications →

AXIS P3905-R from AXIS COMMUNICATIONS - Mk III Dome Camera

AXIS P3905-R

AXIS P3905-R Mk III Dome Camera

View specifications →

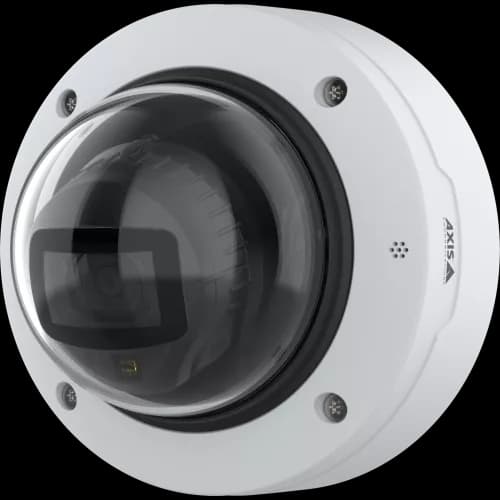

AXIS P3288-LV from AXIS COMMUNICATIONS - Dome Camera viewed from its left angle.
