Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

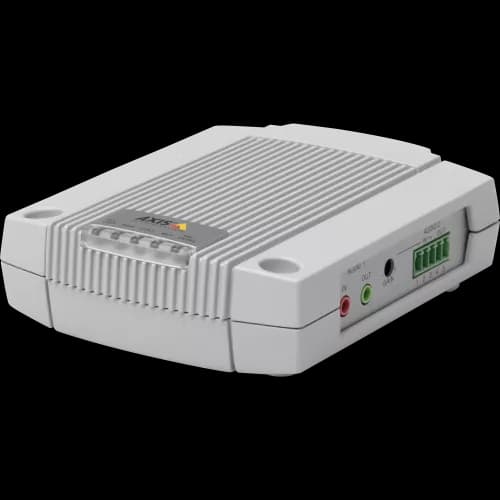

AXIS P8221 from AXIS COMMUNICATIONS - Network I/O Audio Module, viewed from its left angle
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P8221 I/O Audio Module

Model: AXIS P8221

Understand code
Request a Quote

Professional AXIS P8221 I/O Audio Module solution from Axis Communications

  • zipstream
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • analytics
The AXIS P8221 is an IP video decoder that delivers 1080p60 resolution with PoE+ power support, eliminating the need for separate power infrastructure. Built with ONVIF compatibility and AES encryption, it integrates seamlessly into professional surveillance systems while maintaining secure video streams across your network. Its intuitive web interface enables remote monitoring and troubleshooting, making it ideal for multi-camera deployments in retail, enterprise, and security applications.

Technical Specifications

ACAP SupportedDocker
Digital I/O
8 configurable I/O ports Input ports: min -40 V DC, max 40 V DC Output ports: Open-drain, max load 100 mA, max voltage 40 V DC I/O functionality Input trigger Output toggle/pulse Audio Audio streaming Two-way, full and half duplex Audio encoding Encoding: AAC-LC 8, 16 or 32 kHz 8–128 kbit/s G.711 PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s Decoding: G.711 PCM 8 kHz 64 kbit/s G.711 PCM 16 kHz 128 kbit/s G.726 ADPCM 8 kHz 32 or 24 kbit/s
Audio
input/output Input: Microphone/Line in, 48 V phantom powered balanced microphone Output: Line out, Speaker 0,5 W RMS at 4 Ω Functionality Audio streaming, play uploaded (WAV, AU) and record (AU) clips AU (G.711 µ-law 8-bit 8/16 kHz Mono), WAV (PCM 16-bit 8/16/32 kHz Mono) Audio detection trigger Network Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log
Supported
protocols IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS System integration Application Programming Interface Open API for software integration, including VAPIX®; specifications at www.axis.com Web browser Configuration and management, I/O monitor/control, Two-way audio, Synchronize audio with external video source, Record (video and/or audio) to file (ASF)
System
requirements AXIS Media Control (AMC) is required to access live video and audio in Live view Event triggers Audio detection External inputs On boot Event actions Notification: email, HTTP, TCP External output port Play audio clip General Casing Metal casing, standalone or wall mount Memory 64 MB RAM, 128 MB Flash Power 8–34 V DC, max 8.2 W 20–24 V AC, max 13.7 VA Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Connectors RJ45 10BASE-T/100BASE-TX PoE Terminal blocks: power (8–34 V DC/ 20–24 V AC), I/O, Balanced microphone, Speaker out, RS232/RS485/RS422 serial port 3.5 mm mic/line in, 3.5 mm line out
Operating
conditions 0 °C to 50 °C (32 °F to 122 °F) Humidity 20–80% RH (non-condensing) Approvals EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class BEN 60950-1 Dimensions 98,9 x 118 x 31,4 mm (3.9 x 4.6 x 1.3 in) Weight 335 g (0.7 lb)
Included
accessories Power supply, Mounting and connector kits, Installation guide, Windows decoder user license
Optional
accessories For more accessories, see www.axis.com Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese Warranty 5-year warranty, see axis.com/warranty a. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young ([email protected]).
Environmental responsibility:
axis.com/environmental-responsibility

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Object DetectionMotion DetectionTampering Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Module

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Notification Messages

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P8221 and what is it used for?+

The AXIS P8221 is a fixed camera from Axis Communications. The AXIS P8221 is an IP video decoder that delivers 1080p60 resolution with PoE+ power support, eliminating the need for separate power infrastructure. Built with ONVIF compatibility and AES encryption, it integrates seamlessly into professional surveillance systems while maintaining secure video streams across your network. Available in the United States through Aeon Security, an authorized Axis partner.

What are the key technical differentiators of the AXIS P8221?+

The main differentiators of the AXIS P8221 include: Audio support; Qualidade de imagem superior; Easy installation. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P8221?+

The AXIS P8221 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS P8221 have built-in artificial intelligence?+

Yes, the AXIS P8221 features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.

Is the AXIS P8221 compatible with VMS systems?+

Yes, the AXIS P8221 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

What is the warranty on the AXIS P8221?+

The AXIS P8221 comes with a 5-year Axis Communications warranty against manufacturing defects — one of the most comprehensive in the electronic security industry. Aeon Security offers specialized technical support during and after the warranty period. Contact us at [email protected].

Is the AXIS P8221 available in the United States?+

The AXIS P8221 is available on a special order basis with estimated lead times. Contact our sales team for current availability and pricing.

How can I request a quote for the AXIS P8221?+

You can request a quote by sending an email to [email protected] with the desired model and your project details. Our sales team will respond with pricing, lead time, and customized terms.
