Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

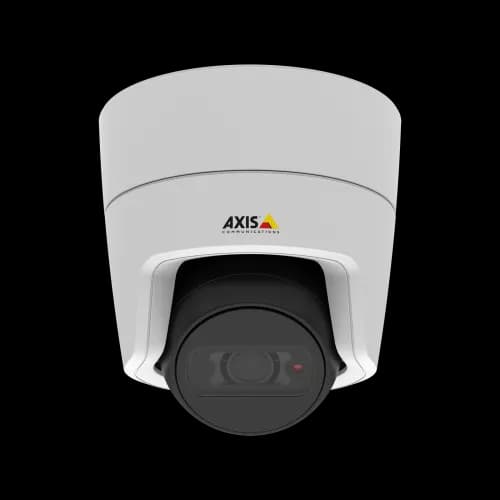

AXIS IP from AXIS COMMUNICATIONS - Camera M3105-LVE has Discreet, flexible and outdoor-ready
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS M3105-LVE Network Camera

Model: AXIS M3105-LVE

Understand code
Request a Quote

Professional AXIS M3105-LVE Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS M3105-LVE is a fixed dome network camera for discreet indoor and outdoor monitoring. It delivers Full HD 1080p video with smooth capture of fast motion, sharp color images in low light via Axis Lightfinder, and preserved details in high-contrast scenes using Forensic WDR, plus 24/7 visibility with built-in IR. Edge analytics detect motion in real time, while its robust IP66- and IK08-rated design supports PoE installation and broad 115° coverage.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Wide Dynamic Range (WDR)
Forensic Capture
Minimum Illumination (Color)
0.2 lux
Minimum Illumination (B/W)
0.04 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
25/30
Day/Night Functionality
Yes
Focal Length
2.8 mm
Horizontal Field of View
115 °
Vertical Field of View
64 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
PoE Class
2
Signed OS
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
Vandal rating
IK08
IP Rating
IP66
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsLarod

Security

IEEE 802.1XHTTPSSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1X

Video Analytics

Object DetectionMotion Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS M3105-LVE and what is it used for?+

The AXIS M3105-LVE is a fixed camera from Axis Communications. The AXIS M3105-LVE is a fixed dome network camera for discreet indoor and outdoor monitoring. It delivers Full HD 1080p video with smooth capture of fast motion, sharp color images in low light via Axis Lightfinder, and preserved details in high-contrast scenes using Forensic WDR, plus 24/7 visibility with built-in IR. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS M3105-LVE?+

The AXIS M3105-LVE captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 0.2 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS M3105-LVE work in outdoor and harsh environments?+

The AXIS M3105-LVE operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of IK08. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS M3105-LVE?+

The AXIS M3105-LVE has a lens with a focal length of 2.8 mm and a horizontal field of view of 115 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS M3105-LVE powered and installed?+

The AXIS M3105-LVE is powered via Power over Ethernet (PoE class 2). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS M3105-LVE?+

The main differentiators of the AXIS M3105-LVE include: Full HD 1080p resolution (2 MP); Up to 25/30 fps capture; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS M3105-LVE?+

The AXIS M3105-LVE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Retail loss prevention. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS M3105-LVE have built-in artificial intelligence?+

Yes, the AXIS M3105-LVE features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.

Related Products

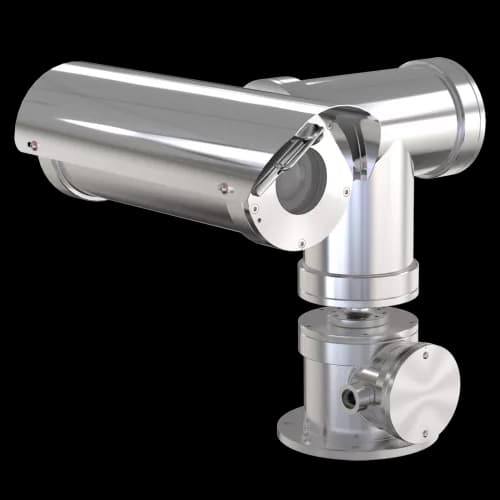

XP40-Q1785 - câmera fixa de segurança IP profissional descontinuada pela Axis Communications

XP40-Q1785

XP40-Q1785

View specifications →

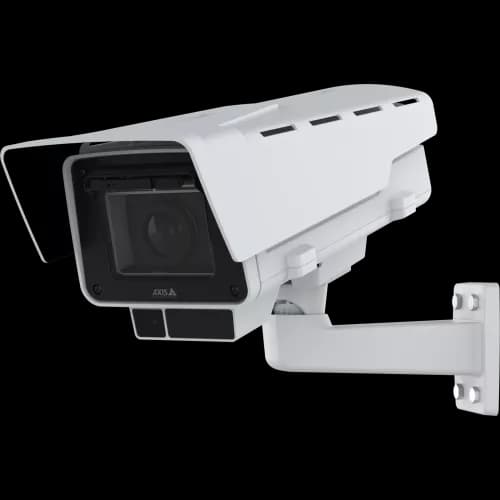

White AXIS Q1728-LE Block Camera viewed from its left angle from AXIS COMMUNICATIONS
