Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

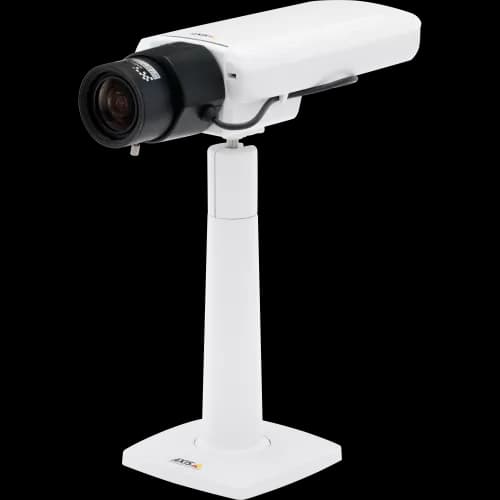

AXIS P1364 from AXIS COMMUNICATIONS - IP camera in white color that has Lightfinder and WDR. The product is viewed from its left angle.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P1364 Network Camera

Model: AXIS P1364

Understand code
Request a Quote

Professional AXIS P1364 Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAP
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P1364 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/3", Lightfinder: Lightfinder, Wide Dynamic Range: Forensic Capture. Notable features: 1280x960 resolution, Up to 50/60 fps capture, 1/3" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP Supported
Image Sensor
CMOS
Sensor Size
1/3"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic Capture
Minimum Illumination (Color)
0.1 lux
Minimum Illumination (B/W)
0.01 lux
Maximum Video Resolution
1280x960
Frame Rate (fps)
50/60
Focal Length
2.8 - 8.5 mm
Horizontal Field of View
92.3 - 33.3 °
Vertical Field of View
67.9 - 24.7 °
Montagem da lente
CS
Replaceable lens
Yes
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
PoE Class
3
Signed OS
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 55 °C
DC input voltage
8-28 V

Available APIs

VAPIXParameterVideoEvents

Security

HTTPSPassword protection

Networking

IPv4IPv6HTTPS

Video Analytics

Motion DetectionTampering Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P1364 and what is it used for?+

The AXIS P1364 is a fixed camera from Axis Communications. The AXIS P1364 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/3", Lightfinder: Lightfinder, Wide Dynamic Range: Forensic Capture. Notable features: 1280x960 resolution, Up to 50/60 fps capture, 1/3" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P1364?+

The AXIS P1364 captures images at a resolution of 1280x960 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.1 lux. This HD resolution serves general monitoring applications well with optimized bandwidth and storage.

Does the AXIS P1364 work in outdoor and harsh environments?+

The AXIS P1364 operates in temperatures of 0 to 55 °C with a rating of - and impact resistance of -. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS P1364?+

The AXIS P1364 has a lens with a focal length of 2.8 - 8.5 mm and a horizontal field of view of 92.3 - 33.3 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P1364 powered and installed?+

The AXIS P1364 is powered via Power over Ethernet (PoE class 3) with a maximum consumption of -. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P1364?+

The main differentiators of the AXIS P1364 include: 1280x960 resolution; Up to 50/60 fps capture; 1/3" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P1364?+

The AXIS P1364 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P1364 compatible with VMS systems?+

Yes, the AXIS P1364 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
