Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

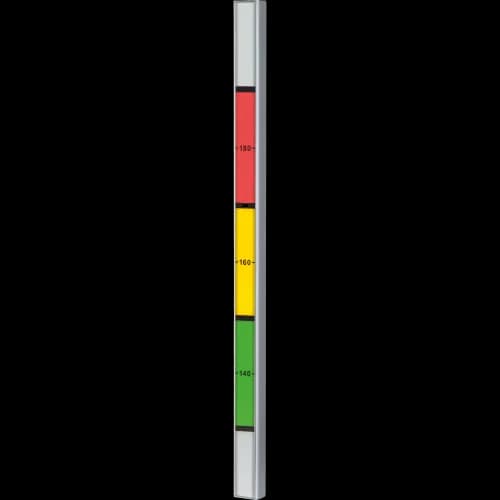

AXIS P8524 from AXIS COMMUNICATIONS - eye-level height strip IP camera for identification. The camera is viewed from its left angle.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P8524 Network Camera

Model: AXIS P8524

Understand code
Request a Quote

Professional AXIS P8524 Network Camera solution from Axis Communications

  • onvif
  • zipstream
  • edge storage
⚠️Discontinued Product⚠️On requestACAPDocker

Overview

  • onvif
  • zipstream
  • edge storage
  • analytics
The AXIS P8524 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. It delivers 1280x720 resolution with superior image quality and supports easy installation. Native integration with leading VMS platforms via ONVIF protocol is included, along with a 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Dimension - Height strip
1.Sensor unit is positioned at 170 cm (metric model) and 5.5 ft (imperial model) from the floor Dimension - Main unit for AXIS P8524 1.microSD card slot 2.Camera connector 3.I/O 4.Network 5.Power 6.Mounting rail Dimension - Main unit for AXIS P8535 1.SD card slot 2.To sensor unit 3.Audio in/out 4.I/O 5.RS232 6.Power 7.Network
--- Page 3 ---
Technical Specifications - AXIS P8524 Network Camera Models AXIS P8524: HDTV 720p in black/silver housing with metric/imperial height strip Camera Image sensor 1/4” progressive scan RGB CMOS Lens Fixed iris, fixed focus 3.7 mm: 57° viewa, F2.5 Light sensitivity 1.2-10000 lux Shutter time 1/24500 s to 1/6 s
Camera angle
adjustment Pan ±15° Cable length 12 m (39 ft) cable on sensor unit for attachment to main unit Video
Video
management software AXIS Camera Companion (included), AXIS Camera Station and video management software from Axis’ Application Development Partners (not included) Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty a. Horizontal angle of view b. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young ([email protected]).
Supported
protocols IPv4/v6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH System integration Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at www.axis.com; AXIS Video Hosting System (AVHS) with One-Click Camera Connection; ONVIF Profile S, specification at www.onvif.org Analytics Video motion detection, Active tampering alarm, Audio detection, AXIS Camera Application Platform Event triggers Intelligent video, External inputs, Edge storage events Event actions File upload: FTP, HTTP, network share and email; Notification: email, HTTP and TCP; External output activation; Pre- and post-alarm video buffering; Video and audio recording to edge storage; Play audio clip; WDR mode
Built-in
installation aids Pixel counter Data streaming Event data General Casing Aluminum Memory 512 MB RAM, 256 MB Flash Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 (max 7.7 W); 8–28 V DC max 7.8 W Connectors Female RJ45 for 10BASE-T/100BASE-TX PoE; RJ12 for sensor unit; 6-pin terminal block for four configurable inputs/outputs (12 V DC output), max. load 50 mA; 3.5 mm mic/line in, 3.5 mm line out; 5-pin terminal block RS232; 2-pin terminal block for 8–28 V DC input Edge storage SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included); Support for recording to dedicated network-attached storage (NAS)
Edge storage
microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included) Support for recording to dedicated network-attached storage (NAS)
Operating
conditions Humidity 10–85% RH (non-condensing) Main unit: -30 °C to 60 °C (-22 °F to 140 °F) Height strip: -30 °C to 55 °C (-22 °F to 131 °F) Approvals IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, EN 55022 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 50581 Main unit only: ECE R10 rev.04, EN 50121-4, IEC 62236-4 Weight Main unit: 532 g (1.17 lb) Height strip: 1050 g (2.3 lb)
Included
accessories Installation Guide, Installation and Management Software CD, Windows decoder 1-user license, AVHS Authentication key
Optional
accessories AXIS F8001 Surface Mount with Strain Relief, AXIS F8002 DIN Rail Clip, AXIS T8120 15 W Midspan, AXIS T83 Microphones
--- Page 4 ---
Technical Specifications - AXIS P8535 Network Camera Models AXIS P8535: HDTV 1080p with AXIS F41 Main Unit and AXIS F1025 Sensor Unit in black/silver housing with metric/imperial height strip Camera Image sensor 1/2.8” (effective) progressive scan RGB CMOS Lens Fixed iris, fixed focus, 3.7 mm: 92° viewa, F2.5
Minimum
illumination Color: 0.3 lux, F2.5 Shutter time HDTV 1080p 25/30/50/60 fps: 1/143000 s to 2 s WUXGA (1920x1200) 25/30 fps: 1/143000 s to 2 s
Audio
input/output External microphone input or line input, Line output Network Security Password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, Digest authentication, User access log, Centralized certificate management

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Motion DetectionTampering DetectionAudio Detection

Downloads

Series

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis M2014 E, Axis P1204 And Axis P8524 Network Cameras

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P8524 and what is it used for?+

The AXIS P8524 is a fixed camera from Axis Communications. The AXIS P8524 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. It delivers 1280x720 resolution with superior image quality and supports easy installation. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P8524?+

The AXIS P8524 captures images at a resolution of 1280x720 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 1.2 lux lux. This HD resolution serves general monitoring applications well with optimized bandwidth and storage.

Does the AXIS P8524 work in outdoor and harsh environments?+

The AXIS P8524 operates in temperatures of -20 to 50 °C with a rating of - and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P8524?+

The AXIS P8524 has a lens with a focal length of 3.7 mm and a horizontal field of view of 57 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P8524 powered and installed?+

The AXIS P8524 is powered via Power over Ethernet (PoE class 2) with a maximum consumption of Yes. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P8524?+

The main differentiators of the AXIS P8524 include: 1280x720 resolution; Qualidade de imagem superior; Easy installation. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P8524?+

The AXIS P8524 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P8524 compatible with VMS systems?+

Yes, the AXIS P8524 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS P1357-E from AXIS COMMUNICATIONS - outdoor-ready IP camera with P-Iris control. The camera is viewed from its left.

AXIS P1357-E

AXIS P1357-E Network Camera

View specifications →

AXIS P1290-E from AXIS COMMUNICATIONS - box IP camera - product image

AXIS P1290-E

AXIS P1290-E Thermal Network Camera

View specifications →

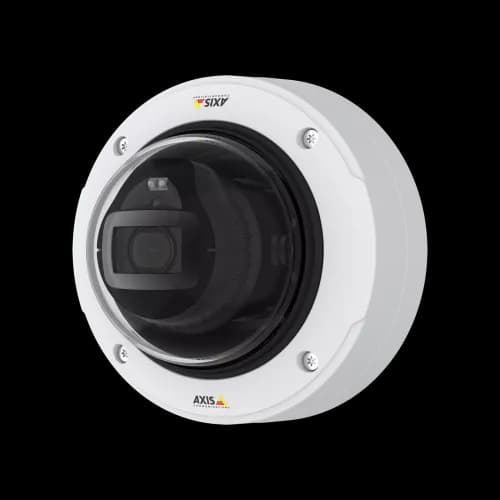

AXIS P3248-LVE from AXIS COMMUNICATIONS - IP camera, viewed from its left angle
