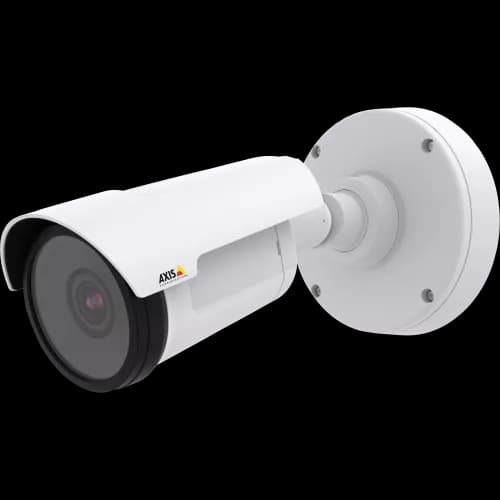

AXIS P1428-E from AXIS COMMUNICATIONS - compact, outdoor-ready bullet camera with Day & Night functionality. The camera is viewed from its left.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P1428-E Network Camera

Model: AXIS P1428-E

Understand code
Request a Quote

Professional AXIS P1428-E Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On requestACAPDocker

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P1428-E is a fixed network camera designed for professional security and surveillance. It features a 1/2.5" CMOS sensor, Axis Lightfinder technology for low-light performance, and WDR for high-contrast scenes, along with built-in edge video analytics and H.264 compression. The camera integrates natively with leading VMS platforms via ONVIF and includes a 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.5"
Wide dynamic range
Dynamic Contrast
Minimum illumination/light sensitivity (Color)
1.4 lux
Minimum illumination/light sensitivity (B/W)
0.3 lux
Maximum Video Resolution
3840x2160
Maximum frames per second
25/30
Focal Length
3.3 - 9.8 mm
Horizontal Field of View
109 - 35 °
Vertical Field of View
68 - 20 °
H.264
Baseline, High, Main
PoE Class
3
Remote Focus
Yes
Zoom remoto
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-30 to 50 °C
Ready for external use
Yes
IP Rating
IP66

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Object DetectionMotion DetectionTampering Detection

Downloads

Camera

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P1428-E and what is it used for?+

The AXIS P1428-E is a fixed camera from Axis Communications. The AXIS P1428-E is a fixed network camera designed for professional security and surveillance. It features a 1/2.5" CMOS sensor, Axis Lightfinder technology for low-light performance, and WDR for high-contrast scenes, along with built-in edge video analytics and H.264 compression. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P1428-E?+

The AXIS P1428-E captures images at a resolution of 3840x2160 using a CMOS sensor, at up to 25 fps. Minimum sensitivity of 1.4 lux lux. This 4K resolution enables facial identification at distances exceeding 20 meters and license plate reading.

Does the AXIS P1428-E work in outdoor and harsh environments?+

The AXIS P1428-E operates in temperatures of -30 to 50 °C with a rating of IP66 and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P1428-E?+

The AXIS P1428-E has a lens with a focal length of 3.3 - 9.8 mm and a horizontal field of view of 109 - 35 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P1428-E powered and installed?+

The AXIS P1428-E is powered via Power over Ethernet (PoE class 3) with a maximum consumption of -. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P1428-E?+

The main differentiators of the AXIS P1428-E include: 4 resolution; 1/2.5" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes; H.264 compression. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P1428-E?+

The AXIS P1428-E is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P1428-E compatible with VMS systems?+

Yes, the AXIS P1428-E is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS 225FD - câmera fixa de segurança IP profissional descontinuada pela Axis Communications

AXIS 225FD

AXIS 225FD

View specifications →

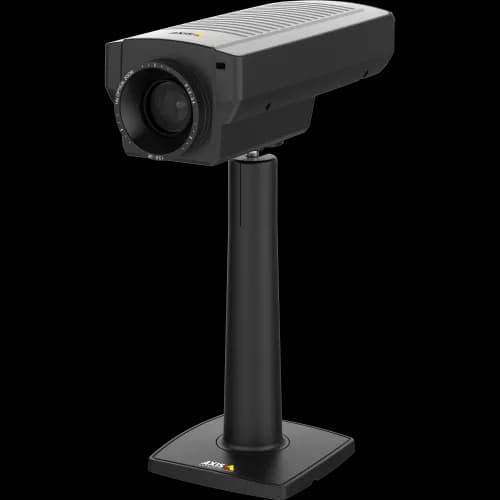

AXIS Q1775 from AXIS COMMUNICATIONS - flexible day/night IP camera for excellent video and audio. The camera is in black color.

AXIS Q1775

AXIS Q1775 Network Camera

View specifications →

AXIS Q1765 from AXIS COMMUNICATIONS - box IP camera - product image

AXIS Q1765

AXIS Q1765 Foot Chassis

View specifications →

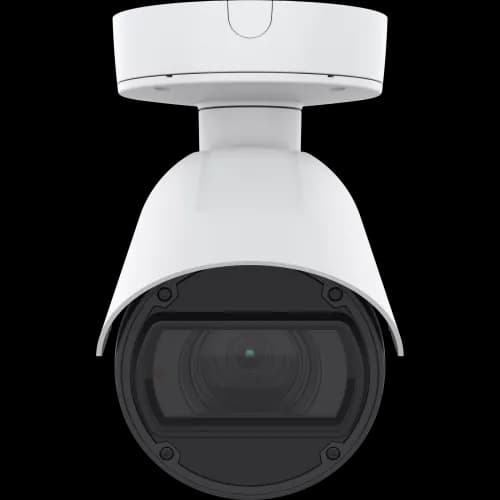

AXIS Q1785-LE from AXIS COMMUNICATIONS - IP Camera has OptimizedIR. The product is viewed from its front.
