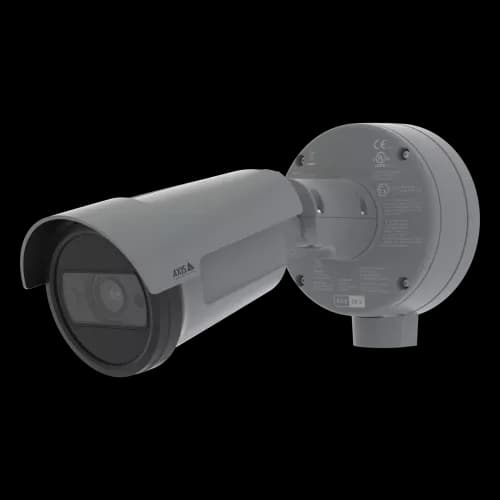

Gray wall mounted camera AXIS P1468-XLE. from AXIS COMMUNICATIONS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P1468-XLE Explosion-Protected Bullet Camera

Model: AXIS P1468-XLE

Understand code
Request a Quote

Professional AXIS P1468-XLE Explosion-Protected Bullet Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P1468-XLE is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/1.2", Lightfinder: Lightfinder 2.0, Wide Dynamic Range: Forensic WDR. Notable features: 4 resolution, Up to 50/60 fps capture, 1/1.2" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/1.2"
Lightfinder
Lightfinder 2.0
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.07 lux
Minimum Illumination (B/W)
0 lux
Maximum Video Resolution
3840x2160
Frame Rate (fps)
50/60
Focal Length
6.2 - 12.9 mm
Optical Zoom
2.08
Horizontal Field of View
108 - 49 °
Vertical Field of View
58 - 27 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
H.265
Yes
PoE Class
3
Signed OS
Yes
Secure Boot
Yes
Remote Focus
Yes
Zoom remoto
Yes
Local Storage (Memory Card)
Yes
Ready for external use
Yes
IP Rating
IP66, IP67
Maximum Power
13.0 W
Average Power
7.6 W
DC Input Voltage
12-28 V

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Motion Detection

Downloads

Zone 2,22 and Class I/II/III Division 2 according to ATEX/IECEx/cULus

Other•PDF
ViewDownload

DOWNLOAD

Other•PDF
ViewDownload

Datasheet (pdf)

Datasheet•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P1468-XLE and what is it used for?+

The AXIS P1468-XLE is a fixed camera from Axis Communications. The AXIS P1468-XLE is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/1.2", Lightfinder: Lightfinder 2.0, Wide Dynamic Range: Forensic WDR. Notable features: 4 resolution, Up to 50/60 fps capture, 1/1.2" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P1468-XLE?+

The AXIS P1468-XLE captures images at a resolution of 3840x2160 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.07 lux. This 4K resolution enables facial identification at distances exceeding 20 meters and license plate reading.

Does the AXIS P1468-XLE work in outdoor and harsh environments?+

The AXIS P1468-XLE has a rating of IP66, IP67. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS P1468-XLE?+

The AXIS P1468-XLE features 2x optical zoom with a focal length of 6.2 - 12.9 mm and a horizontal field of view of 108 - 49 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P1468-XLE powered and installed?+

The AXIS P1468-XLE is powered via Power over Ethernet (PoE class 3) with a maximum consumption of 13.0 W. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P1468-XLE?+

The main differentiators of the AXIS P1468-XLE include: 4 resolution; Up to 50/60 fps capture; 1/1.2" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P1468-XLE?+

The AXIS P1468-XLE is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P1468-XLE secure against cyber attacks?+

The AXIS P1468-XLE incorporates built-in cybersecurity features from Axis Communications, including Axis Edge Vault for device identity protection, signed firmware to prevent unauthorized software, and end-to-end encryption. Axis Communications follows the NIST secure development model, ensuring protection against cyber threats from manufacturing.
