Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

AXIS
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P3225-LV Mk II Network Camera

Model: AXIS P3225-LV

Understand code
Request a Quote

Professional AXIS P3225-LV Mk II Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS P3225-LV is a fixed dome camera designed for reliable security and surveillance in demanding environments. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/3" CMOS sensor, enhanced by Axis Lightfinder for low-light performance and Forensic WDR for high-contrast scenes. Native ONVIF integration ensures seamless compatibility with leading video management systems, backed by a 5-year warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/3"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic Capture
Minimum Illumination (Color)
0.16 lux
Minimum Illumination (B/W)
0.0 lux
Maximum Video Resolution
1920x1080
Frame Rate (fps)
50/60
Day/Night Functionality
Yes
Focal Length
3 - 10.5 mm
Horizontal Field of View
92 - 34 °
Vertical Field of View
50 - 20 °
Axis Zipstream
Yes
H.264
Baseline, High, Main
PoE Class
3
Signed OS
Yes
Remote Focus
Yes
Zoom remoto
Yes
Built-in IR
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 50 °C
Vandal rating
IK08
IP Rating
IP52
Designed for repainting
Yes
Sustainability
Livre de PVC

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Object DetectionMotion DetectionTampering Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Document

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Specifications

Other•PDF
ViewDownload

Specifications

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P3225-LV and what is it used for?+

The AXIS P3225-LV is a fixed camera from Axis Communications. The AXIS P3225-LV is a fixed dome camera designed for reliable security and surveillance in demanding environments. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/3" CMOS sensor, enhanced by Axis Lightfinder for low-light performance and Forensic WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P3225-LV?+

The AXIS P3225-LV captures images at a resolution of 1920x1080 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.16 lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS P3225-LV work in outdoor and harsh environments?+

The AXIS P3225-LV operates in temperatures of 0 to 50 °C with a rating of IP52 and impact resistance of IK08. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS P3225-LV?+

The AXIS P3225-LV has a lens with a focal length of 3 - 10.5 mm and a horizontal field of view of 92 - 34 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P3225-LV powered and installed?+

The AXIS P3225-LV is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P3225-LV?+

The main differentiators of the AXIS P3225-LV include: Full HD 1080p resolution (2 MP); Up to 50/60 fps capture; 1/3" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P3225-LV?+

The AXIS P3225-LV is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control, Retail loss prevention, Banking security. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P3225-LV compatible with VMS systems?+

Yes, the AXIS P3225-LV is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS P7701 from AXIS COMMUNICATIONS - Video Decoder from left angle

AXIS P7701

AXIS P7701 Video Decoder

View specifications →

P4708-PLVE from AXIS COMMUNICATIONS

AXIS P4708-PLVE

AXIS P4708-PLVE Panoramic Camera

View specifications →

IP Camera AXIS P3363-V has PoE, Day/night functionality and is vandal-resistant. The camera is viewed from it´s front from AXIS COMMUNICATIONS

AXIS P3363-V

AXIS P3363-V Network Camera

View specifications →

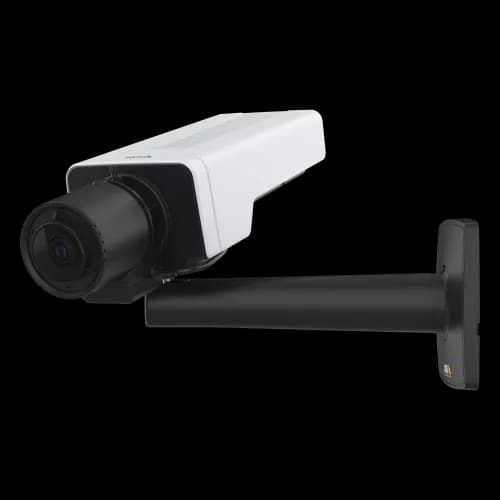

AXIS P1387 from AXIS COMMUNICATIONS - viewed from its left
