  7. AXIS P8535

Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

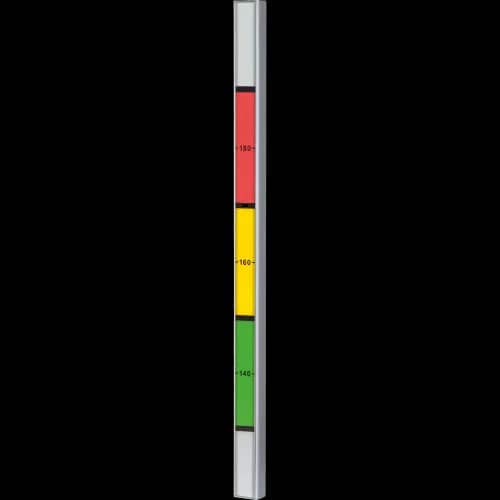

AXIS P8535 from AXIS COMMUNICATIONS - eye-level height strip camera for identification. The camera is viewed from its left.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS P8535 Network Camera

Model: AXIS P8535

Understand code
Request a Quote

Professional AXIS P8535 Network Camera solution from Axis Communications

  • onvif
  • zipstream
  • edge storage
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • onvif
  • zipstream
  • edge storage
  • analytics
The AXIS P8535 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. It delivers 1920x1200 resolution with superior image quality and supports easy installation. Native integration with leading VMS platforms via ONVIF protocol is included, along with a 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Models
AXIS P8535: HDTV 1080p with AXIS F41 Main Unit and AXIS F1025 Sensor Unit in black/silver housing with metric/imperial height strip Camera Image sensor 1/2.8” (effective) progressive scan RGB CMOS Lens Pinhole, fixed iris, fixed focus, 3.7 mm, F2.5 Horizontal field of view: 92°
Minimum
illumination Color: 0.3 lux, F2.5 Shutter time HDTV 1080p 25/30/50/60 fps: 1/143000 s to 2 s WUXGA (1920x1200) 25/30 fps: 1/143000 s to 2 s
Camera angle
adjustment Pan ±15° Cable length 12 m (39 ft) cable on sensor unit for attachment to main unit Video
Video
management software AXIS Companion (included), AXIS Camera Station and video management software from Axis’ Application Development Partners (not included) Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty a. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young ([email protected]).
Audio
input/output External microphone input or line input, Line output Network Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized certificate management
Supported
protocols IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH System integration Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at www.axis.com AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF® Profile S and ONVIF® Profile G, specification at www.onvif.org Analytics Video motion detection, Active tampering alarm, Audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications, see www.axis.com/acap Event triggers Analytics, external inputs, edge storage events Event actions File upload via FTP, HTTP, network share and email Notification: email, HTTP and TCP External output activation, pre- and post-alarm video buffering, video and audio recording to edge storage, play audio clip, WDR mode
Built-in
installation aids Pixel counter Data streaming Event data General Casing Aluminum Memory 512 MB RAM, 256 MB Flash Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 7.7 W 8–28 V DC, max 7.8 W Connectors Female RJ45 for 10BASE-T/100BASE-TX PoE, RJ12 for sensor unit, 6-pin terminal block for four configurable inputs/outputs (12 V DC output), max load 50 mA, 3.5 mm mic/line in, 3.5 mm line out, 5-pin terminal block RS232, 2-pin terminal block for 8–28 V DC input Storage Support for SD/SDHC/SDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see www.axis.com
Operating
conditions Humidity 10–85% RH (non-condensing) Main unit: -30 °C to 60 °C (-22 °F to 140 °F) Height strip: -30 °C to 55 °C (-22 °F to 131 °F) Approvals EMC EN 55024, EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24 Safety IEC/EN/UL 60950-1 Environment IEC 60068-2-6, IEC 60068-2-27, EN 50581 Main unit only: ECE R10 rev.04, EN 50121-4, IEC 62236-4 Weight Main unit: 532 g (1.17 lb) Height strip: 1050 g (2.3 lb)
Included
accessories Installation Guide, Windows decoder 1-user license, AVHS Authentication key
Optional
accessories AXIS F8001 Surface Mount with Strain Relief, AXIS F8002 DIN Rail Clip, AXIS T8120 15 W Midspan, AXIS T83 Microphones
Environmental responsibility:
axis.com/environmental-responsibility

Available APIs

VAPIXParameterVideoEventsStorageLarod

Security

IEEE 802.1XHTTPSIP filteringSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoS

Video Analytics

Motion DetectionTampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

Eol Statement For Axis P8535 Network Camera And Axis F9201 Height Strip Housing

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS P8535 and what is it used for?+

The AXIS P8535 is a fixed camera from Axis Communications. The AXIS P8535 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. It delivers 1920x1200 resolution with superior image quality and supports easy installation. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS P8535?+

The AXIS P8535 captures images at a resolution of 1920x1200 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.03 lux lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS P8535 work in outdoor and harsh environments?+

The AXIS P8535 operates in temperatures of -30 to 55 °C with a rating of - and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS P8535?+

The AXIS P8535 has a lens with a focal length of 3.7 mm and a horizontal field of view of 92 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS P8535 powered and installed?+

The AXIS P8535 is powered via Power over Ethernet (PoE class 3) with a maximum consumption of Yes. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS P8535?+

The main differentiators of the AXIS P8535 include: 1920x1200 resolution; Qualidade de imagem superior; Easy installation. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS P8535?+

The AXIS P8535 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS P8535 compatible with VMS systems?+

Yes, the AXIS P8535 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

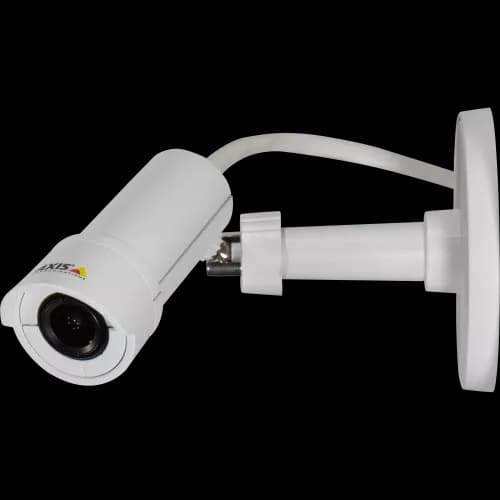

AXIS M2014-E from AXIS COMMUNICATIONS - IP camera in a stylish and functional design. The camera is viewed from its left.

AXIS M2014-E

AXIS M2014-E Network Camera

View specifications →

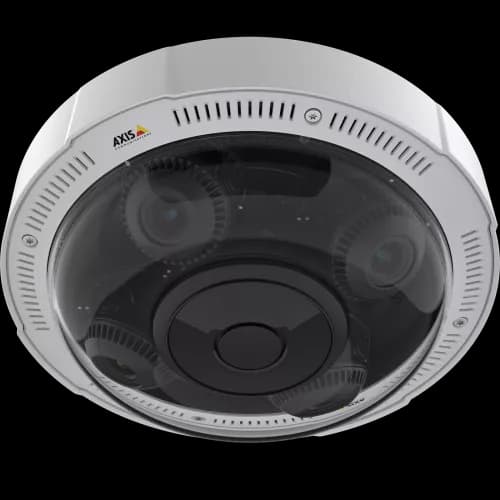

AXIS P3727-PLE from AXIS COMMUNICATIONS - Panoramic Camera, viewed from its left angle

AXIS P3727-PLE

AXIS P3727-PLE Panoramic Camera

View specifications →

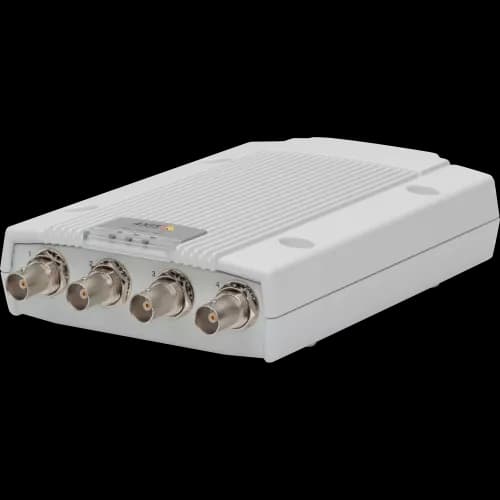

AXIS M7014 from AXIS COMMUNICATIONS - from rigth

AXIS M7014

AXIS M7014 Video Encoder

View specifications →

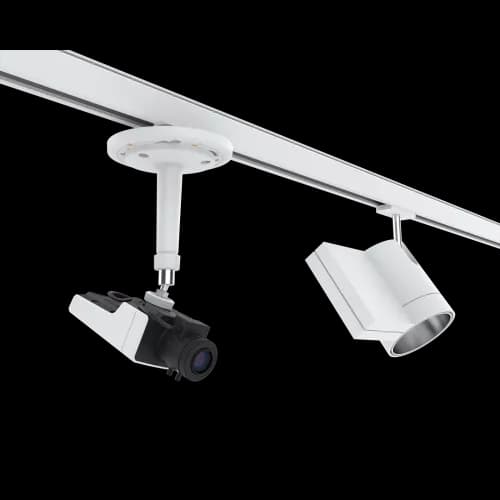

AXIS M1125 from AXIS COMMUNICATIONS - box IP camera - product image
