  7. AXIS Q1635

Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

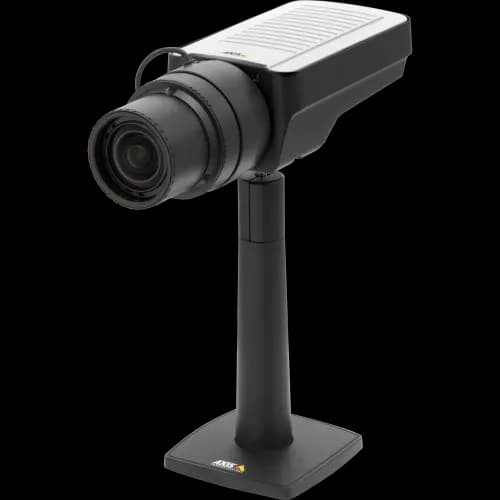

AXIS Q1635 from AXIS COMMUNICATIONS - fixed camera with WDR-Forensic Capture and Lightfinder technology. The IP camera is viewed from its left.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q1635 Network Camera

Model: AXIS Q1635

Understand code
Request a Quote

Professional AXIS Q1635 Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q1635 is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/2" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Native ONVIF integration ensures seamless compatibility with leading VMS platforms, backed by a 5-year warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic Capture
Minimum Illumination (Color)
0.1 lux
Minimum Illumination (B/W)
0.01 lux
Maximum Video Resolution
1920x1200
Frame Rate (fps)
50/60
Electronic Image Stabilization
Yes
Focal Length
4 - 13 mm
Horizontal Field of View
102 - 33 °
Vertical Field of View
56 - 19 °
Montagem da lente
C/CS
Replaceable lens
Yes
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
PoE Class
3
Local Storage (Memory Card)
Yes
Operating Temperature
0 to 55 °C
DC input voltage
8-28 V

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Object DetectionMotion DetectionTampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis Q1635 And Axis A1635 E

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q1635 and what is it used for?+

The AXIS Q1635 is a fixed camera from Axis Communications. The AXIS Q1635 is a fixed camera designed for professional security and surveillance. It delivers Full HD 1080p resolution with up to 50/60 fps capture using a 1/2" CMOS sensor, Axis Lightfinder for low-light performance, and Forensic WDR for high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q1635?+

The AXIS Q1635 captures images at a resolution of 1920x1200 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.1 lux lux. This Full HD resolution offers an excellent balance between image quality and storage efficiency.

Does the AXIS Q1635 work in outdoor and harsh environments?+

The AXIS Q1635 operates in temperatures of 0 to 55 °C with a rating of - and impact resistance of -. Consult the datasheet for full environmental rating details.

What is the zoom range and field of view of the AXIS Q1635?+

The AXIS Q1635 has a lens with a focal length of 4 - 13 mm and a horizontal field of view of 102 - 33 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS Q1635 powered and installed?+

The AXIS Q1635 is powered via Power over Ethernet (PoE class 3) with a maximum consumption of -. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q1635?+

The main differentiators of the AXIS Q1635 include: Full HD 1080p resolution (2 MP); Up to 50/60 fps capture; 1/2" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q1635?+

The AXIS Q1635 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS Q1635 compatible with VMS systems?+

Yes, the AXIS Q1635 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS P3364-LVE from AXIS COMMUNICATIONS - Semi-smoked Dome Cover

AXIS P3364-LVE

AXIS P3364-LVE Semi-smoked Dome Cover

View specifications →

AXIS P1377-LE from AXIS COMMUNICATIONS - IP Camera has OptimizedIR and Forensic WDR. The product is viewed from its front.

AXIS P1377-LE

AXIS P1377-LE Network Camera

View specifications →

AXIS IP from AXIS COMMUNICATIONS - Camera M3205-LVE has HDTV 1080p video quality and WDR and IR illumination

AXIS M3205-LVE

AXIS M3205-LVE Network Camera

View specifications →

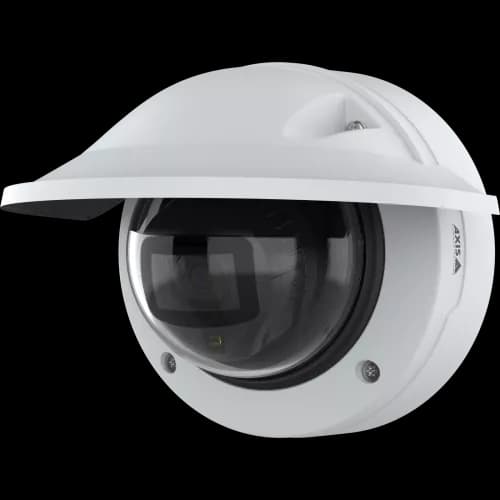

AXIS P3278-LVE from AXIS COMMUNICATIONS - dome IP camera - product image
