Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

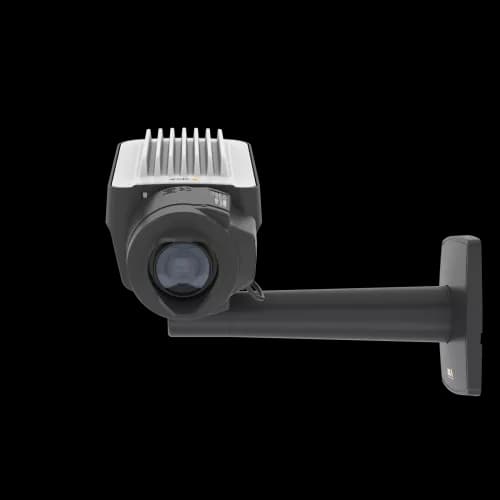

AXIS Q1647 from AXIS COMMUNICATIONS - IP Camera has Lightfinder functionality. The product is viewed from its front.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q1647 Network Camera

Model: AXIS Q1647

Understand code
Request a Quote

Professional AXIS Q1647 Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q1647 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2", Lightfinder: Lightfinder, Wide Dynamic Range: Forensic WDR. Notable features: 3072x1728 resolution, Up to 50/60 fps capture, 1/2" CMOS sensor, Axis Lightfinder technology for low light. Native integration with leading VMS platforms via ONVIF protocol. Includes 5-year manufacturer warranty.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
Forensic WDR
Minimum Illumination (Color)
0.12 lux
Minimum Illumination (B/W)
0.02 lux
Maximum Video Resolution
3072x1728
Frame Rate (fps)
50/60
Electronic Image Stabilization
Yes
Focal Length
3.9 - 10 mm
Horizontal Field of View
110-44 °
Vertical Field of View
59-24 °
Montagem da lente
CS
Replaceable lens
Yes
Axis Zipstream
Yes
H.264
Baseline, High, Main
Audio Support
Yes
PoE Class
3
Signed OS
Yes
Remote Focus
Yes
Zoom remoto
Yes
Local Storage (Memory Card)
Yes
Operating Temperature
-20 to 60 °C
Sustainability
Livre de PVC
Maximum power
11.2 W
Average power
6.4 W
DC input voltage
8-28 V

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Object DetectionMotion DetectionTampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q1647 and what is it used for?+

The AXIS Q1647 is a fixed camera from Axis Communications. The AXIS Q1647 is a fixed camera from Axis Communications, designed for professional security and surveillance applications. Key specifications include Image Sensor: CMOS, Image Sensor Size: 1/2", Lightfinder: Lightfinder, Wide Dynamic Range: Forensic WDR. Notable features: 3072x1728 resolution, Up to 50/60 fps capture, 1/2" CMOS sensor, Axis Lightfinder technology for low light. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q1647?+

The AXIS Q1647 captures images at a resolution of 3072x1728 using a CMOS sensor, at up to 50 fps. Minimum sensitivity of 0.12 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS Q1647 work in outdoor and harsh environments?+

The AXIS Q1647 operates in temperatures of -20 to 60 °C with a rating of - and impact resistance of -. Designed for outdoor use, it withstands severe weather conditions.

What is the zoom range and field of view of the AXIS Q1647?+

The AXIS Q1647 has a lens with a focal length of 3.9 - 10 mm and a horizontal field of view of 110-44 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS Q1647 powered and installed?+

The AXIS Q1647 is powered via Power over Ethernet (PoE class 3) with a maximum consumption of 11.2 W. It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q1647?+

The main differentiators of the AXIS Q1647 include: 3072x1728 resolution; Up to 50/60 fps capture; 1/2" CMOS sensor; Axis Lightfinder technology for low light; Forensic WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q1647?+

The AXIS Q1647 is especially suited for: Perimeter monitoring, Outdoor area surveillance, Visual access control. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS Q1647 compatible with VMS systems?+

Yes, the AXIS Q1647 is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.
