5-yearModel: AXIS A9161
Understand codeProfessional AXIS A9161 NETWORK I/O RELAY MODULE solution from Axis Communications
• 6X I/O, configurable as input, supervised input with analog read-out or output (Digital input: 0 to Maximum 40 V DC, possible to supervise between 0-12 V (4 states), Digital output: 0 to Maximum 40 V DC, open drain, Maximum 100 mA) Relays 1x form C relay, NA/NF contacts, Maximum 1 A, 30 V DC
• Network Security
• Network and Security
• Operating conditions -40 °C to 55 °C (-40 °F to 131 °F) humidity 20–85% RH (non-condensing)
• Approvals EN 55032 class B, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 subpart B class B, ICES-003 class B, RCM AS/NZS CISPR32 class B, VCCI class B, IEC/EN/UL 62368-1, EN 50581
• Dimensions 35 x 178 x 120 mm (1.4 x 7 x 4.7 in)
• Accessories AXIS T8120 Midspan 15 W, AXIS T8129 PoE Extender AXIS T8006 PS12 power supply
• Languages English, French, Italian, German and Spanish
• Warranty 5-year
Axis standard warranty: 5 years against manufacturing defects.

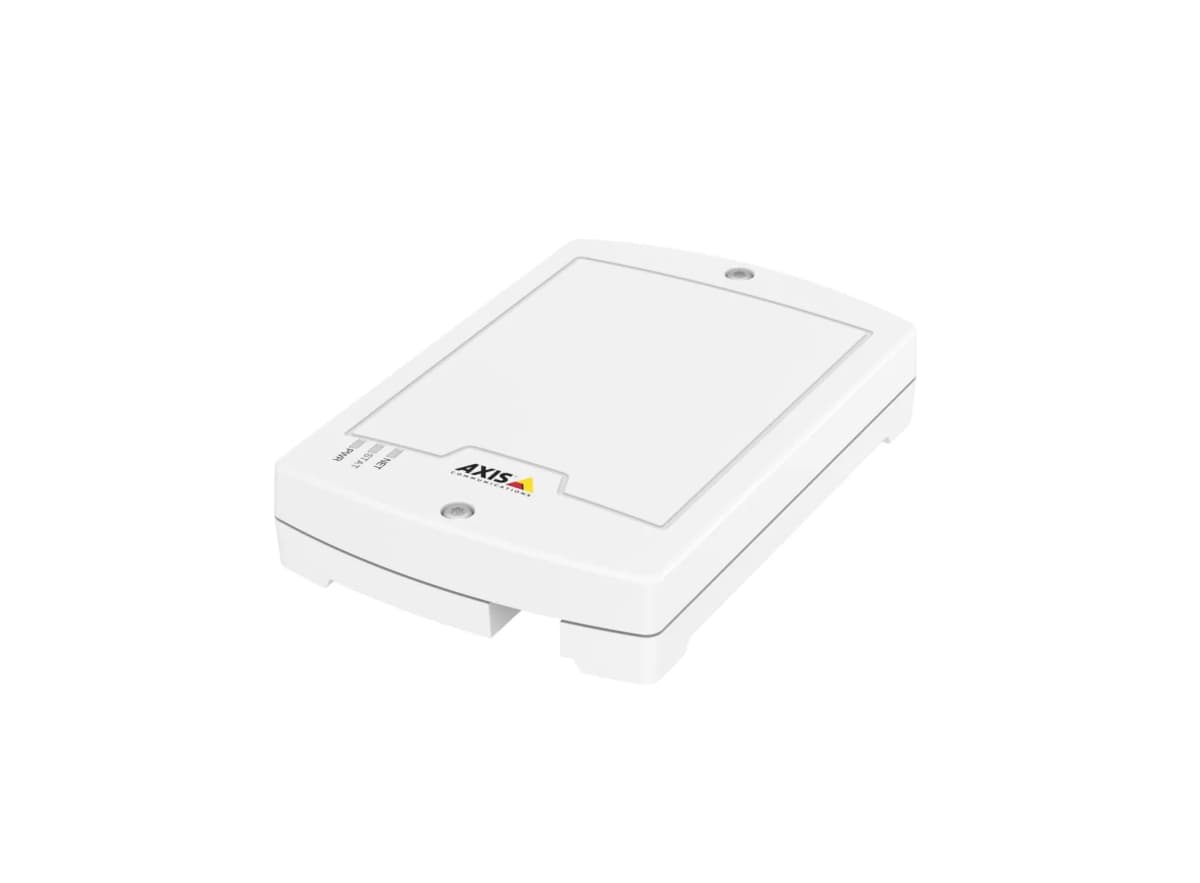

The AXIS A9161 is an I/O module from Axis Communications. The AXIS A9161 is a network I/O relay module designed for professional surveillance systems, enabling connections to external devices like detectors, lights, switches, and alarm relays in demanding environments. It supports configurable input and output ports for supervised monitoring, real-time event detection, and native ONVIF integration with leading VMS platforms. Available in the United States through Aeon Security, an authorized Axis partner.
The AXIS A9161 is a network I/O (input/output) module from Axis Communications. The AXIS A9161 is a network I/O relay module designed for professional surveillance systems, enabling connections to external devices like detectors, lights, switches, and alarm relays in demanding environments. It supports configurable input and output ports for supervised monitoring, real-time event detection, and native ONVIF integration with leading VMS platforms. It expands security system capabilities by connecting analog devices to the IP network.
The main differentiators of the AXIS A9161 include: Built-in edge video analytics; 5-year manufacturer warranty; Aeon Security technical support. These features position it for demanding professional electronic security applications.
The AXIS A9161 is especially suited for: Professional electronic security, Surveillance systems. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.
Yes, the AXIS A9161 natively integrates with the Axis Communications ecosystem, including AXIS Camera Station for centralized management, and is compatible with Axis technology partner solutions.
The AXIS A9161 comes with a 5-year Axis Communications warranty against manufacturing defects — one of the most comprehensive in the electronic security industry. Aeon Security offers specialized technical support during and after the warranty period. Contact us at [email protected].
The AXIS A9161 is available on a special order basis with estimated lead times. Contact our sales team for current availability and pricing.
You can request a quote by sending an email to [email protected] with the desired model and your project details. Our sales team will respond with pricing, lead time, and customized terms.
Contact us to receive a customized proposal for your project.
Request a Quote
