Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

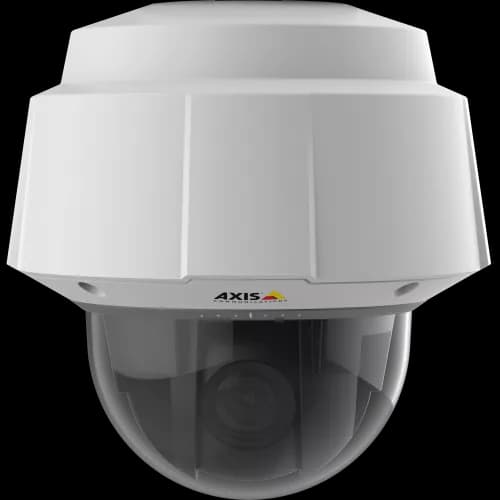

AXIS Q6052-E from AXIS COMMUNICATIONS - outdoor-ready PTZ camera with Lightfinder technology and focus recall.
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q6052-E PTZ Network Camera

Model: AXIS Q6052-E

Understand code
Request a Quote

Professional AXIS Q6052-E PTZ Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On requestACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q6052-E is a PTZ camera from Axis Communications, designed for professional security and surveillance applications. It features a 1/2.8" CMOS sensor, Axis Lightfinder technology for superior low-light performance, and Wide Dynamic Range for handling high-contrast scenes. With native ONVIF integration for leading VMS platforms and a 5-year manufacturer warranty, it delivers reliable pan-tilt-zoom functionality.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.8"
Lightfinder
Lightfinder
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.15 lux
Minimum Illumination (B/W)
0.008 lux
Local Storage (Memory Card)
Yes
Operating Temperature
-50 to 50 °C
Pronto para uso externo
Yes
Vandal rating
IK10
IP Rating
IP66
Designed for repainting
Yes
Maximum Video Resolution
720x480 / 720x576
Frame Rate (fps)
60 / 50
Day/Night Functionality
Yes
Electronic Image Stabilization
Yes
Focal Length
3.3 - 119 mm
Horizontal Field of View
47 - 1.5 °
Vertical Field of View
35.5 - 1.1 °
Pan Range
360 endless
Tilt Range
220
Optical Zoom
36
Digital Zoom
12
Axis Zipstream
Yes
H.264
Baseline, High, Main
Alarm Inputs/Outputs
0/0
PoE Class
High PoE

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Tampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

User Manual

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Eol Statement For Axis Q6052 E

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q6052-E and what is it used for?+

The AXIS Q6052-E is a PTZ camera from Axis Communications. The AXIS Q6052-E is a PTZ camera from Axis Communications, designed for professional security and surveillance applications. It features a 1/2.8" CMOS sensor, Axis Lightfinder technology for superior low-light performance, and Wide Dynamic Range for handling high-contrast scenes. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q6052-E?+

The AXIS Q6052-E captures images at a resolution of 720x480 / 720x576 using a CMOS sensor, at up to 60 fps. Minimum sensitivity of 0.15 lux.

Does the AXIS Q6052-E work in outdoor and harsh environments?+

The AXIS Q6052-E operates in temperatures of -50 to 50 °C with a rating of IP66 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS Q6052-E?+

The AXIS Q6052-E features 36x optical zoom with a focal length of 3.3 - 119 mm and a horizontal field of view of 47 - 1.5 °. This long-range zoom enables detail identification at hundreds of meters, ideal for extensive perimeters and critical infrastructure.

How is the AXIS Q6052-E powered and installed?+

The AXIS Q6052-E is powered via Power over Ethernet (PoE class High PoE). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q6052-E?+

The main differentiators of the AXIS Q6052-E include: 720x480 resolution; Capture up to 60 / 50 fps; 1/2.8" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q6052-E?+

The AXIS Q6052-E is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance, Security in transports. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Is the AXIS Q6052-E compatible with VMS systems?+

Yes, the AXIS Q6052-E is compatible with major VMS systems on the market through ONVIF and VAPIX protocols, ensuring integration with over 2,000 video management platforms.

Related Products

AXIS IP from AXIS COMMUNICATIONS - Camera P5414-E has durable, low maintenance mechanics

AXIS P5415-E

AXIS P5415-E PTZ Network Camera

View specifications →

IP Camera AXIS P5522 is outdoor-ready with IP66 and NEMA 4X ratings and advanced gatekeep. The camera is viewed from front. from AXIS COMMUNICATIONS

AXIS P5522-E

AXIS P5522-E PTZ Network Camera

View specifications →

AXIS Q from AXIS COMMUNICATIONS - 8641-E PT Thermal IP Camera from front

AXIS Q8641-E

AXIS Q8641-E PT Thermal Network Camera

View specifications →

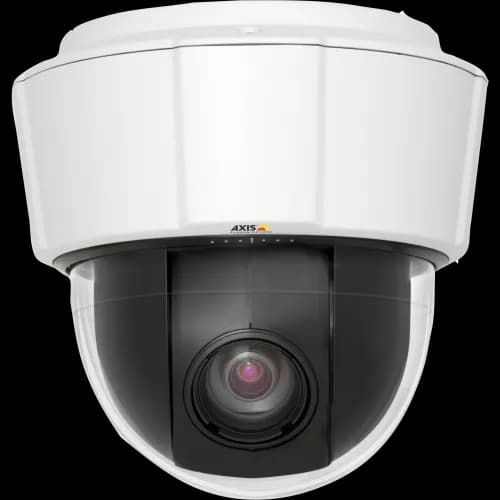

AXIS P5534 from Axis Communications - PTZ network camera - product image
