Discontinued Product

This product has been discontinued by the manufacturer. Contact us for alternatives.

AXIS Q6100-E from AXIS COMMUNICATIONS - PTZ network camera - image 9
Click to enlarge
Request a Quote
Axis CPP Solution Gold Partner
5-year warranty5-year
warranty

AXIS Q6100-E Network Camera

Model: AXIS Q6100-E

Understand code
Request a Quote

Professional AXIS Q6100-E Network Camera solution from Axis Communications

  • zipstream
  • edge storage
  • analytics
⚠️Discontinued Product⚠️On request🔥TrendingACAPDocker
Download Datasheet

Overview

  • zipstream
  • edge storage
  • analytics
The AXIS Q6100-E is an outdoor PTZ camera designed for wide-area coverage with automatic tracking. It delivers sharp images in low light using Axis Lightfinder technology and balances high-contrast scenes with Wide Dynamic Range for detailed video. Zipstream compression with H.265 reduces bandwidth and storage needs while supporting edge analytics, two-way audio, and robust IP66-rated construction for reliable outdoor performance.

Technical Specifications

ACAP SupportedDocker
Image Sensor
CMOS
Sensor Size
1/2.5"
Wide Dynamic Range (WDR)
WDR
Minimum Illumination (Color)
0.4 lux
Minimum Illumination (B/W)
0.03 lux
Local Storage (Memory Card)
Yes
Operating Temperature
-50 to 50 °C
Pronto para uso externo
Yes
Vandal rating
IK10
IP Rating
IP66
Designed for repainting
Yes
Maximum Video Resolution
2592x1944
Frame Rate (fps)
20
Day/Night Functionality
Yes
Focal Length
2.8 mm
Horizontal Field of View
360 °
Vertical Field of View
84 °
Axis Zipstream
Yes
H.264
High, Main
H.265
Yes
Audio Support
Yes
Active breach detection
Yes
PoE Class
High PoE

Available APIs

VAPIXParameterVideoEventsStorageOverlayLarod

Security

IEEE 802.1XHTTPSIP filteringPassword protectionSigned firmware

Networking

IPv4IPv6HTTPSIEEE 802.1XQoSSNMP

Video Analytics

Tampering DetectionAudio Detection

Downloads

Datasheet

Datasheet•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Installation Guide

Other•PDF
ViewDownload

Repainting Instructions

Other•PDF
ViewDownload

Camera

Other•PDF
ViewDownload

Comparison

Other•PDF
ViewDownload

Comparison

Other•PDF
ViewDownload

Declaration of Conformity

Other•PDF
ViewDownload

MTBF Declaration

Other•PDF
ViewDownload

Discontinuation Notice

Other•PDF
ViewDownload

Support

Warranty

Axis standard warranty: 5 years against manufacturing defects.

Contact Aeon

Need help with this product?

Talk to a specialist →

Frequently Asked Questions

What is the AXIS Q6100-E and what is it used for?+

The AXIS Q6100-E is a PTZ camera from Axis Communications. The AXIS Q6100-E is an outdoor PTZ camera designed for wide-area coverage with automatic tracking. It delivers sharp images in low light using Axis Lightfinder technology and balances high-contrast scenes with Wide Dynamic Range for detailed video. Available in the United States through Aeon Security, an authorized Axis partner.

What is the resolution and image quality of the AXIS Q6100-E?+

The AXIS Q6100-E captures images at a resolution of 2592x1944 using a CMOS sensor, at up to 20 fps. Minimum sensitivity of 0.4 lux. This QHD resolution provides superior detail over Full HD, ideal for precise identification in demanding projects.

Does the AXIS Q6100-E work in outdoor and harsh environments?+

The AXIS Q6100-E operates in temperatures of -50 to 50 °C with a rating of IP66 and impact resistance of IK10. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

What is the zoom range and field of view of the AXIS Q6100-E?+

The AXIS Q6100-E has a lens with a focal length of 2.8 mm and a horizontal field of view of 360 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

How is the AXIS Q6100-E powered and installed?+

The AXIS Q6100-E is powered via Power over Ethernet (PoE class High PoE). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

What are the key technical differentiators of the AXIS Q6100-E?+

The main differentiators of the AXIS Q6100-E include: 2592x1944 resolution; Up to 20 fps capture; 1/2.5" CMOS sensor; Axis Lightfinder technology for low light; WDR for high-contrast scenes. These features position it for demanding professional electronic security applications.

What are the main applications for the AXIS Q6100-E?+

The AXIS Q6100-E is especially suited for: Large area monitoring, Rastreamento de objetos, Active surveillance. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.

Does the AXIS Q6100-E have built-in artificial intelligence?+

Yes, the AXIS Q6100-E features built-in AI capabilities for edge-based analytics. All AI processing is done on-device (edge computing), without the need for an external server, ensuring lower latency and greater data privacy.

Related Products

AXIS IP from AXIS COMMUNICATIONS - Camera P5655-E has HDTV 1080p with 32x optical zoom and Focus recall and EIS

AXIS P5655-E

AXIS P5655-E PTZ Network Camera

View specifications →

AXIS Q from AXIS COMMUNICATIONS - 8641-E PT Thermal IP Camera from front

AXIS Q8641-E

AXIS Q8641-E PT Thermal Network Camera

View specifications →

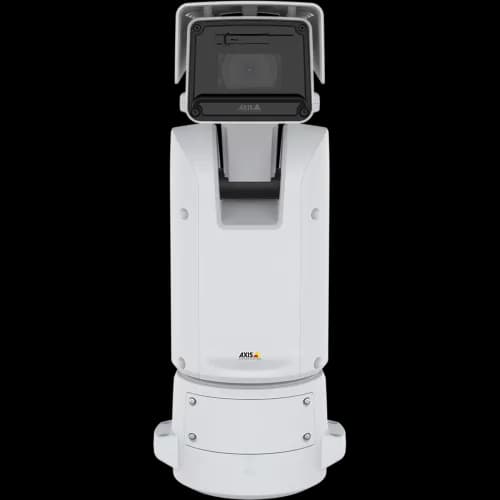

AXIS Q8615-E from AXIS COMMUNICATIONS - PTZ Camera, viewed from its front

AXIS Q8615-E

AXIS Q8615-E PTZ Camera

View specifications →

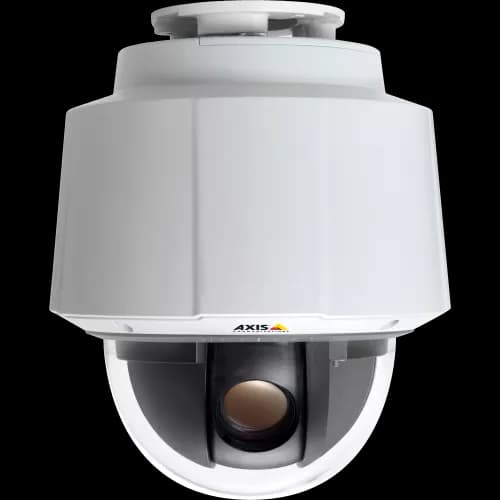

IP Camera AXIS Q6044 has power over ethernet plus (IEEE 802.3at) and enhanced intelligent video. It is viewed from front from AXIS COMMUNICATIONS
