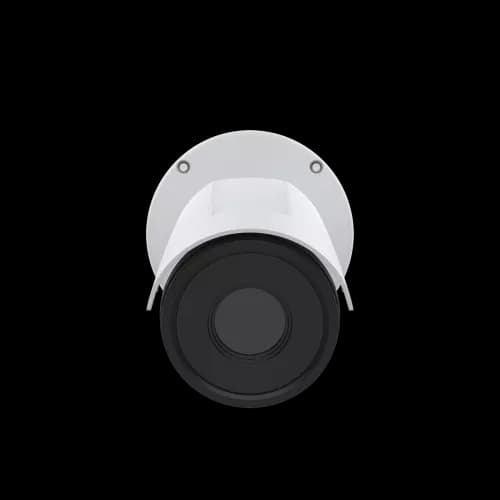

AXIS Q1951-E Thermal Camera

The AXIS Q1951-E is a thermal camera from Axis Communications. The AXIS Q1951-E thermal camera delivers reliable detection in demanding security environments with its rugged outdoor design. It supports H.264 compression and built-in edge analytics for efficient video processing, while offering versatile field of view options and PoE connectivity with IP66/IP67 protection. Available in the United States through Aeon Security, an authorized Axis partner.

The AXIS Q1951-E has a thermal sensitivity (NETD) of 40 mK @25C, F1.0 with a thermal sensor of 384x288. It works perfectly in total darkness, fog, and smoke. Ideal for perimeter intrusion detection, fire prevention, and industrial process monitoring.

The AXIS Q1951-E captures images at a resolution of 384x288 using a Uncooled Microbolometer sensor, at up to 8.3 fps. In thermal cameras, this resolution provides precise detection through temperature differential.

The AXIS Q1951-E operates in temperatures of -40 to 60 °C with a rating of IP66, IP67. This extended temperature range allows operation in cold storage, unprotected outdoor environments, and regions with harsh winters.

The AXIS Q1951-E has a lens with a focal length of 19 / 13 / 35 / 7 / 35 / 13 / 19 / 7 mm and a horizontal field of view of 19.4 / 28 / 10.5 / 55 / 10.5 / 28 / 19.4 / 55 °. This field of view covers areas such as corridors, entrances, and medium-sized spaces.

The AXIS Q1951-E is powered via Power over Ethernet (PoE class 3). It includes a memory card slot for emergency local recording. A single network cable provides data and power, simplifying installation and reducing costs.

The main differentiators of the AXIS Q1951-E include: Capture up to 8.3 / 8.3 / 30 / 30 / 8.3 / 30 / 30 / 8.3 fps; H.264 compression; Built-in edge video analytics; 19.4 / 28 / 10.5 / 55 / 10.5 / 28 / 19.4 / 55 ° field of view; PoE power (class 3). These features position it for demanding professional electronic security applications.

The AXIS Q1951-E is especially suited for: 24/7 intrusion detection, Temperature monitoring, Low-visibility areas, Transport Security, Cidades inteligentes. Contact our technical team to assess suitability for your specific scenario and receive a customized project proposal.
